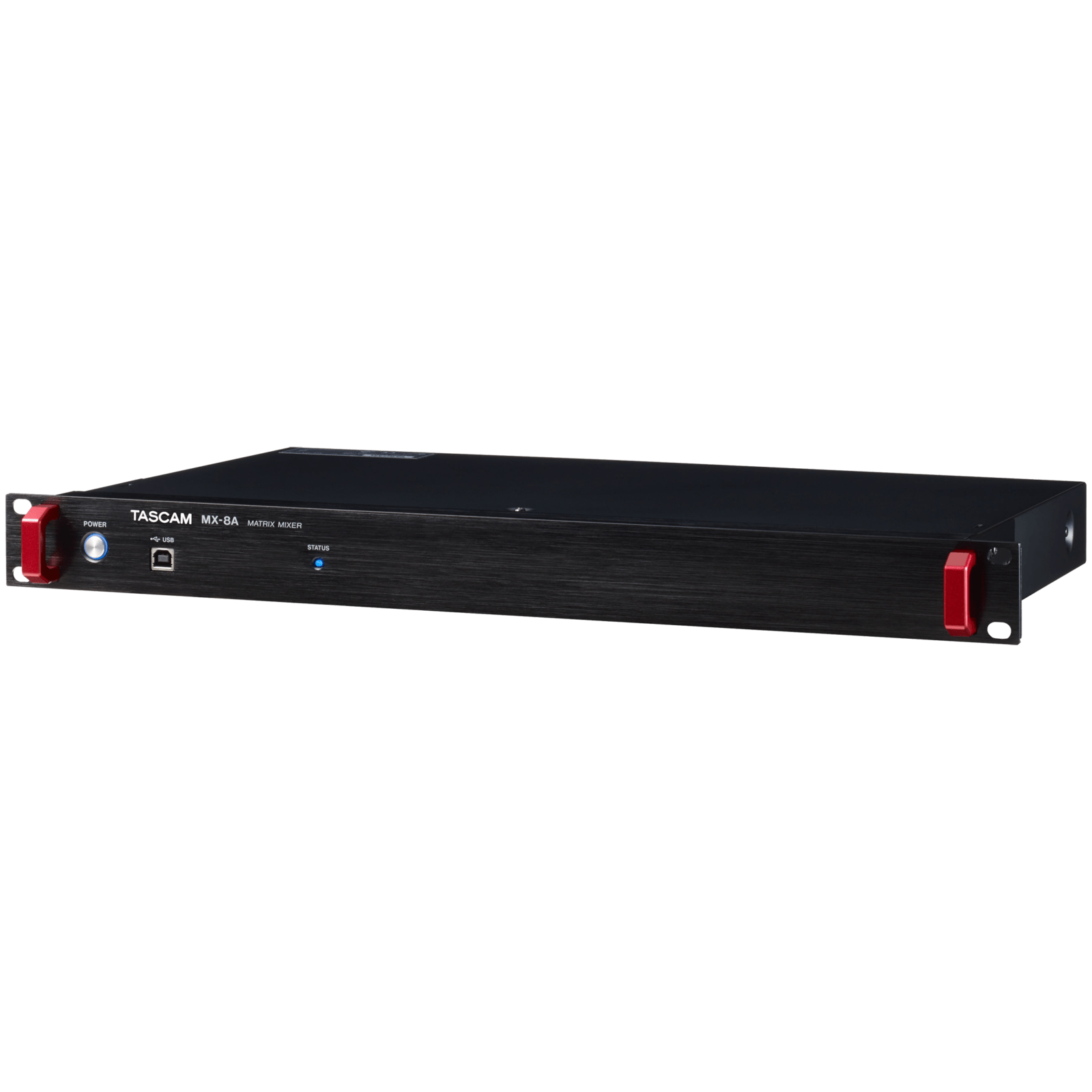

Tascam MX-8 mikser for installasjon

Art.nr: 114887
11.995,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Tascam
Leverandørlager. 8-10 virkedager til lager.

8x8 Matrix Mixer with DSP and Euroblock connectors for installation 19", 1HE

Eight-Channel Matrix Mixer With DSP Processor

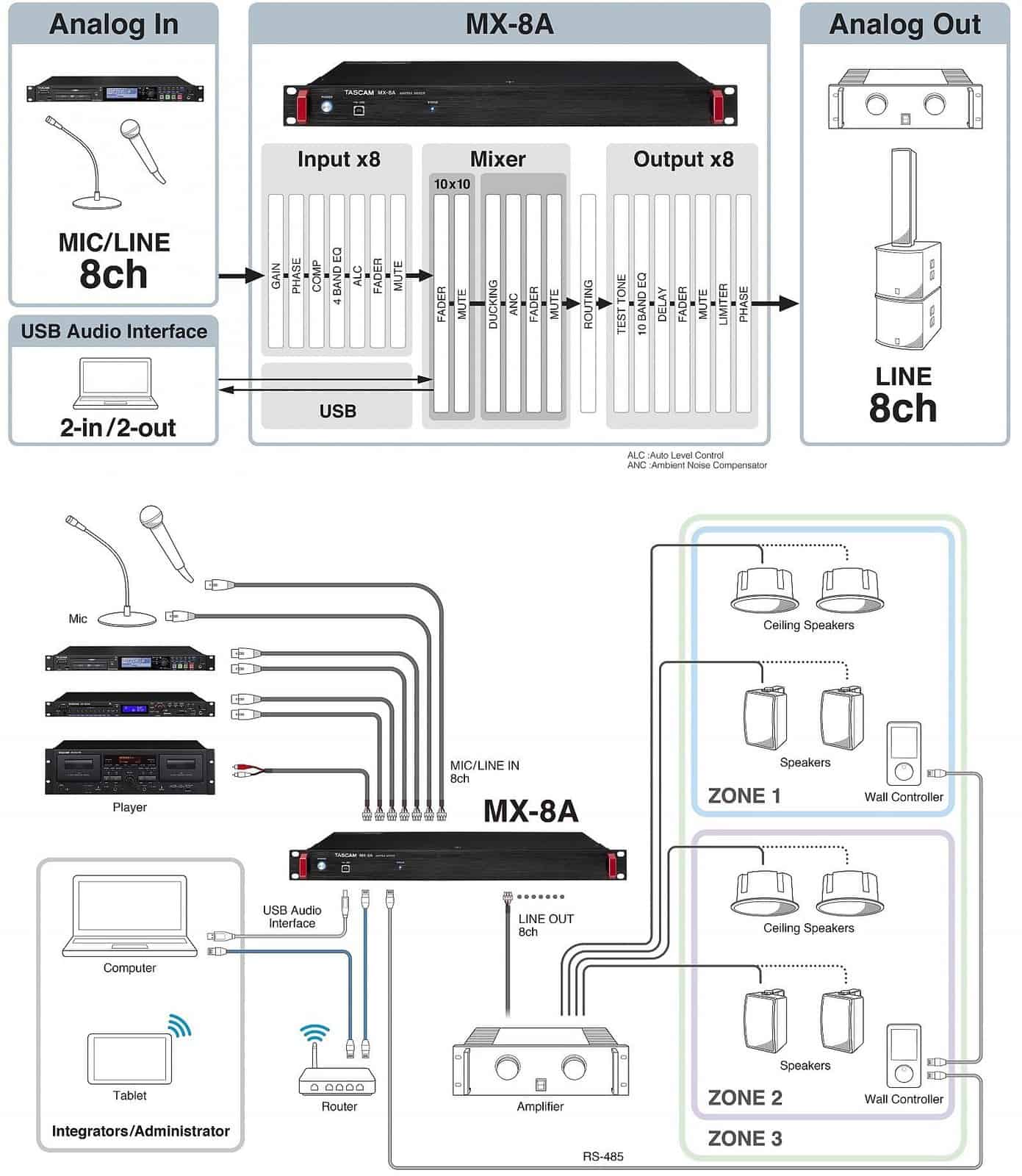

The MX-8A is a 10×10 matrix mixer with eight mic/line inputs, eight line outputs and stereo USB I/O compatible with software- or cloud-based conferencing platforms. It offers powerful internal DSP mixing and routing plus multiple audio processing functions and is ideal for many applications including meeting rooms, huddle spaces, court rooms, restaurants, stores, banqueting rooms and others.

DSP functions include a compressor, four-band parametric EQ and auto level control for each input. The output section features a 10-band EQ with high/low-pass filter, delay, and a limiter function per output, all of which can be adjusted and saved to any of the 50 scene memories, along with the mixing/routing settings. To make audio for announcements clearer, automatic ducking and an ambient noise compensator are also available.

The MX-8A has natural-sounding, high-grade Tascam mic preamps, leveraging our knowledge and experience from many years of making pro audio equipment. The input level range is –77.5 dBu to +26 dBu, with equivalent input noise achieving less than –126 dB, and a signal-to-noise ratio of over 108 dB.

The MX-8A can be controlled via two different software applications available for Mac, Windows, iOS and Android devices: Tascam Tascam MX Connect for configuration and Tascam Tascam EZ Connect for end users, both of which are simple to use and included with the unit. Using Tascam MX Connect installers can quickly and easily configure the MX-8A and then assign appropriate simple controls for access by users via Tascam EZ Connect.

The optional RC-W wall mountable controller (in preparation) offers a graphic display and a push/turn multi-control knob that provides for volume control and source selection.

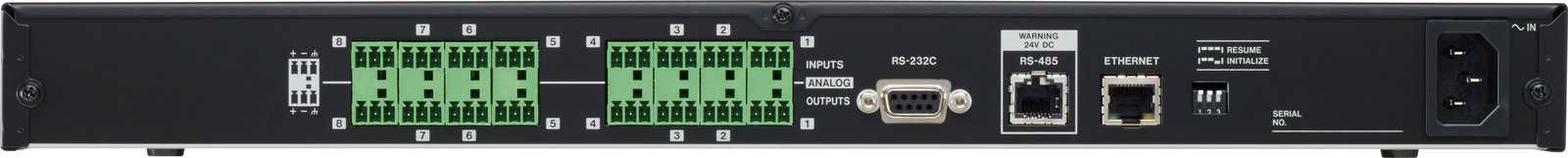

Hardware features

Eight balanced mic/line inputs and eight balanced line outputs

Euroblock connectors – ideal for permanent installation

USB audio interface mode allows to record audio or play background music with a computer

Controllable via an Ethernet network (using the Tascam MX Connect computer application or the Tascam Mixer Protocol)

RS-485 (using a dedicated remote controller)

RS-232C

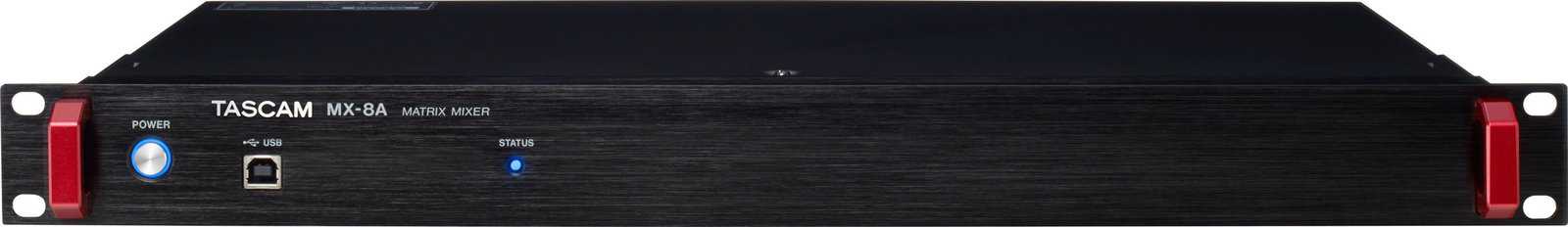

Status indicator on front panel

USB connector on front panel for easy connection of a computer, tablet or smartphone (is also used for firmware updates)

High-quality internal power supply (no AC adapter)

19 inch rackmount size (1U)


Software features :

Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments (selectable via software)

Powerful DSP mixer (controllable via software)

Input features: phantom power on/off, phase, sensitivity, trim, automatic level control, 4-band equalizer, mute, fader

Mixer features: Matrix mixer, ducking, ambient noise compensator (ANC), routing

Outputs features: 10-band equalizer, limiter, delay, mute, fader, phase

Up to 50 scene presets can be saved

Timer event function allows presets to be switched at specific times (planned for a future update)

Two types of control software available (compatible with Windows/Mac/iOS/Android devices):

Tascam MX Connect for system integrators offers full access to virtually all settings

Tascam EZ Connect for end-users is a simple app for only the most necessary settings


USB audio interface features

Two audio inputs and two audio outputs when connected to a Windows/Mac computer or iOS/Android device
Allows audio to be recorded / played back via Windows Media Player, iTunes or DAW applications

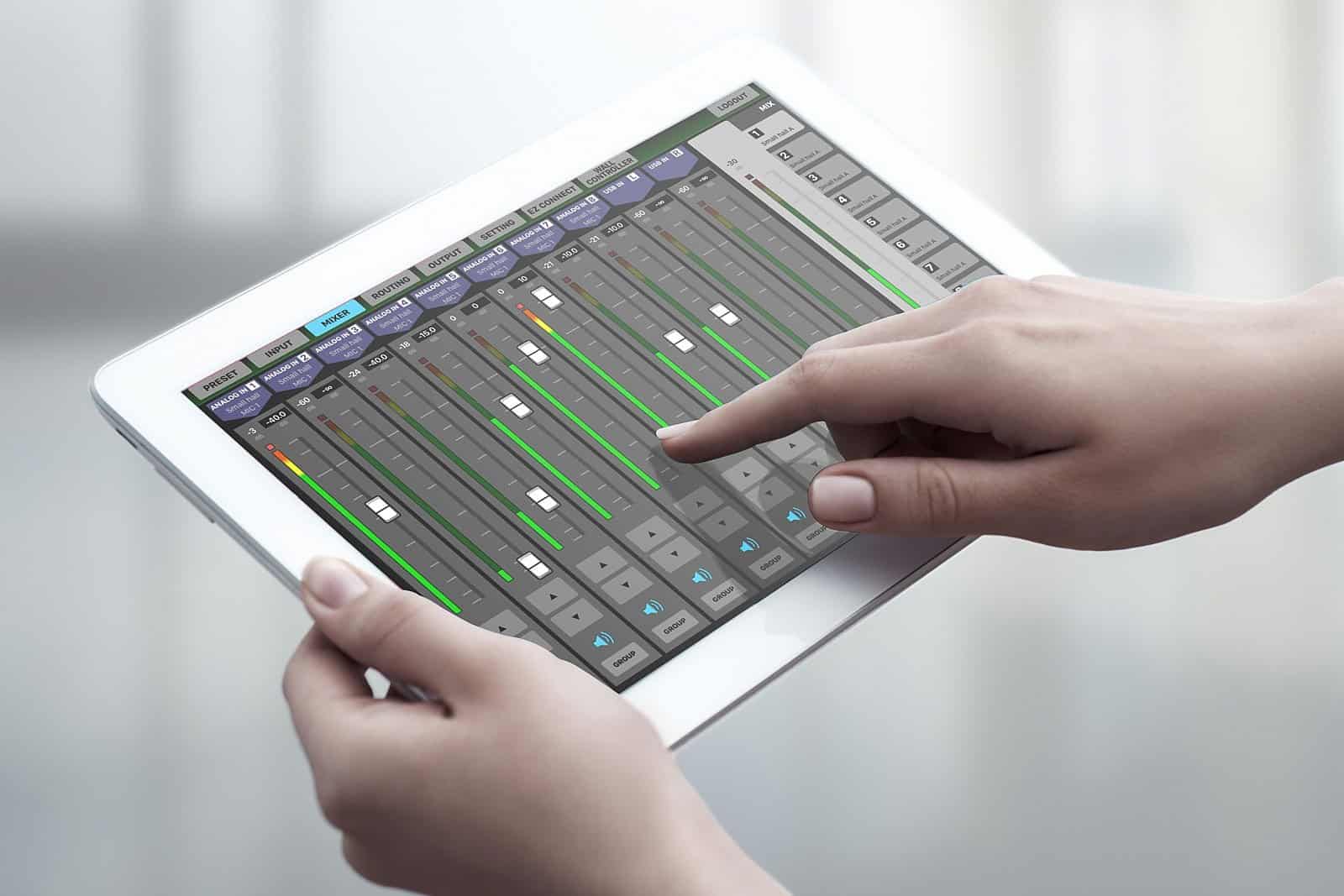

Tascam MX Connect – Control Software for System Integrators/Managers
Tascam MX Connect is a software application exclusively designed for system integrators and system managers that allows system configuration and daily operation of the Tascam MX-8A matrix mixer. It is available for Windows and macOS computers as well as iOS and Android devices and can be freely downloaded from the Tascam websites.

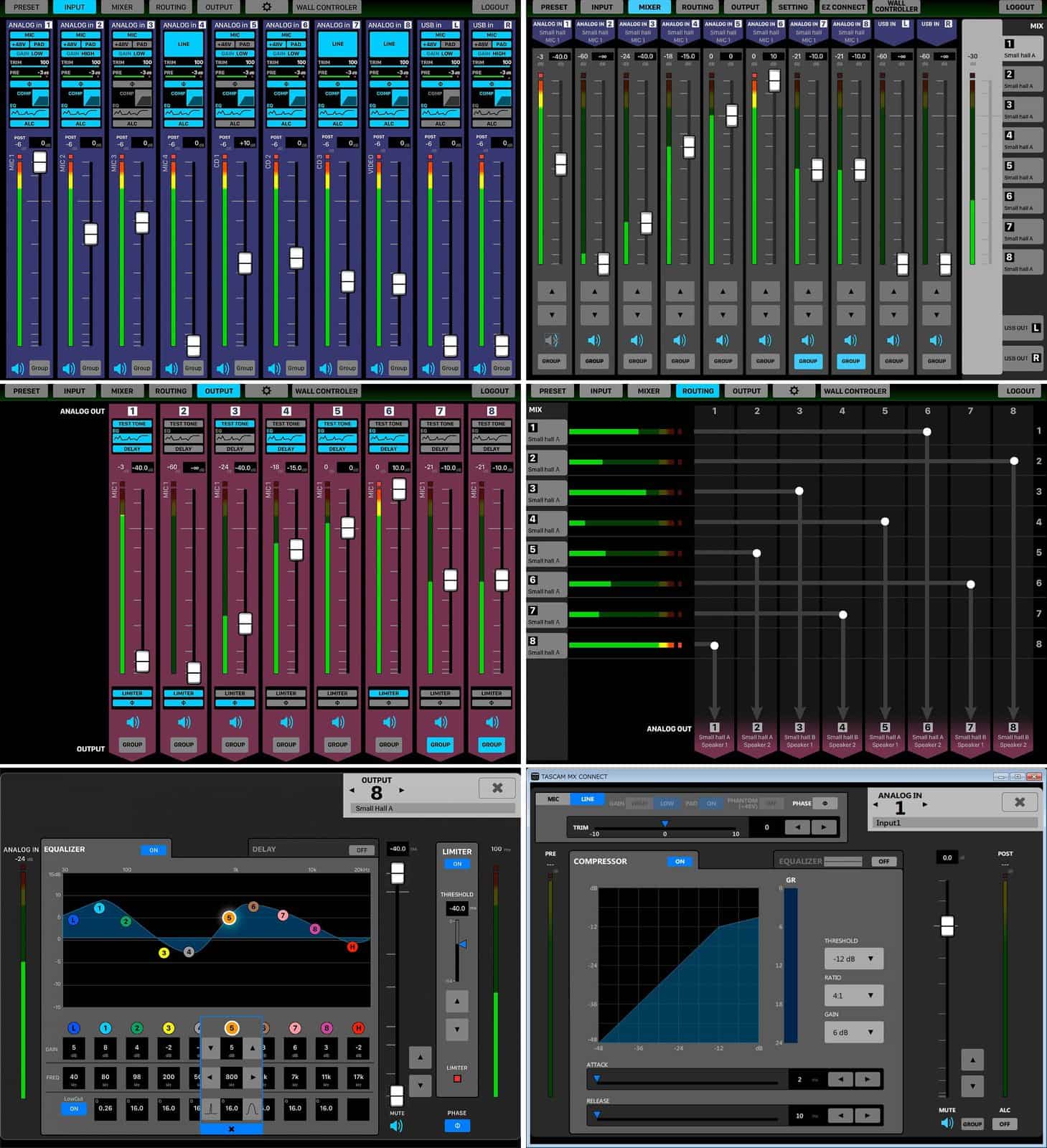

Tascam MX Connect gives users full control of the MX-8A, from input/output configuration to mixing, routing, and digital signal processing. For event spaces or banquet rooms where switching routes or changing audio levels are part of the daily work, the software allows efficient configuration changes as well as status monitoring of input and output signals. Users can either use a wired connection with a LAN cable, or make the MX-8A and Tascam MX Connect share the same network for a wireless connection. Even with having the MX-8A in the plant room or in a corner of the event location won’t stop you from monitoring or controlling it, as long as they are within the same network. In this way, it is also possible to control multiple MX-8A units all at once.


Features:

Controllable input module functions:

Mic/line input switching

Mic gain switching (high/low)

Phantom power on/off (mic input)

PAD (mic input)

Trim

Phase invert

Compressor

Four-band parametric EQ

Auto level control

Mute

Fader

Fader/mute grouping

Controllable output module functions:

Eight-band parametric EQ

High-pass filter / low shelving EQ

Low-pass filter / high shelving EQ

Delay

Limiter

Phase invert

Mute

Fader

Fader/mute grouping

Available for Windows, macOS, iOS, Android devices


Specs:

General

Audio formats44.1/48 kHz, 16/24 bit

Inputs and outputs

USB port4-pin USB B-type

  Transfer rateUSB 2.0 High Speed (480 Mbit/s)

Analogue inputs (ANALOG IN)Balanced Euroblock connectors, 3.81 mm pitch

  Minimum input level–70 dBu

  Maximum input level+26 dBu

  Input impedance≥2.2 kΩ

Analogue outputs (ANALOG OUT)Balanced Euroblock connectors, 3.81 mm pitch

  Nominal output level+4 dBu (Ref(D) ≠ –9 dBFS)
+6 dBu (Ref(D) = −9 dBFS)

  Maximum output level (selectable)+15 dBu (Ref(D): –9 dBFS)
+18 dBu (Ref(D): –14 dBFS)
+20 dBu (Ref(D): –16 dBFS)
+22 dBu (Ref(D): –18 dBFS)
+24 dBu (Ref(D): –20 dBFS)

  Output impedance≤200 Ω

RS-232C connectorD-sub 9-pin (female, inch-standard)

RS-485 connectorRJ-45 connector

  Recommended cableSTP cable, Cat 5e or faster

Network connector (ETHERNET)RJ-45 connector

  Transmission protocolTCP/IP

  Ethernet standard100BASE-TX

  Recommended cableSTP cable, Cat 5e or faster

Audio performance

Mic amp EIN (equivalent input noise)≤−126 dBu
(Mic in to Line out, input impedance: 150 Ω, 22 kHz LPF, A-weighted, JEITA)

Frequency response20 Hz – 20 kHz, ±0.5 dB
(+24 dBu input, Line in to Line out, GAIN at min., JEITA)

Distortion (THD+N)<0.005 %
(+24 dBu input, 1 kHz, Line in to Line out, GAIN at min., JEITA)

S/N ratio≥106 dB
(+24 dBu input, Line in to Line out, GAIN at min., JEITA)

Crosstalk≥107 dB
(+24 dBu input, 1 kHz, Line in to Line out, GAIN at min., JEITA)

Dynamic range≥105 dB
(Line in to Line out, GAIN at min., JEITA)

Note: JEITA indicates compliance with JEITA CP-2150

Power supply and other specifications

Voltage requirementsAC 100–240 V, 50/60 Hz

Power consumption21 W

Dimensions483 mm × 45 mm × 304 mm
(W × H × D, including protrusions)

Weight3 kg

Permissible operating temperature range0–40 °C
