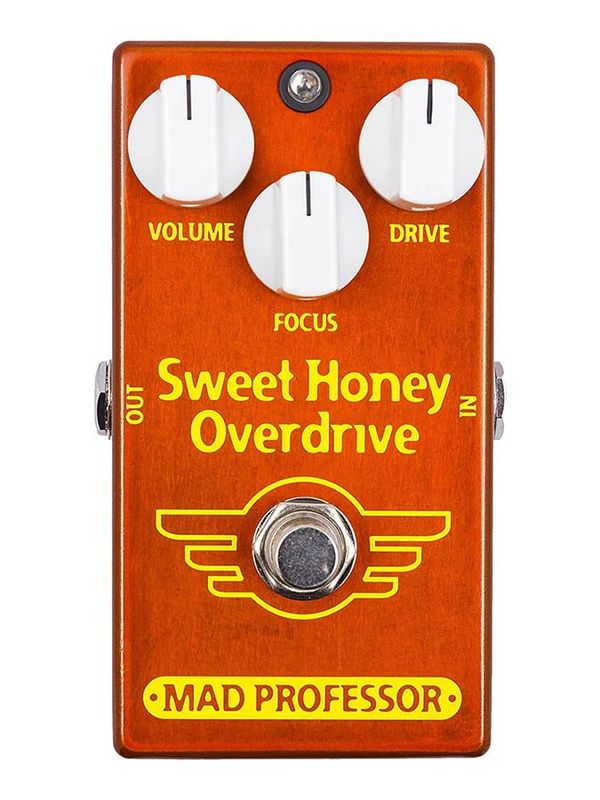

Mad Professor MP-SHO Sweet Honey Overdrive

Art.nr: MP-SHO
2.495,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Mad Professor
Leverandørlager. 10-12 virkedager til lager.

The Sweet Honey Overdrive is a low-gain overdrive pedal that responds dynamically to your playing.

This pedal works very well on distorted amps to give dynamics and definition. It can also give a slight overdrive on clean sounds.

The pedal's dynamics also respond to the pedal's focus knob. The tone knob works as a treble boost and will overdrive the amp faster. This makes the pedal usable in many styles and conditions.

The quality of the Sweet Honey Overdrive is just like the other Mad Professor pedals in terms of quality and especially tone, dynamics and expression.





CONTROLS

VOLUME: Sets the output volume.

DRIVE: Controls the amount of overdrive.

FOCUS: Controls how easily the circuit distorts as well as adjusting overall EQ. Turning CCW gives less distortion and a mellow effect, turning CW gives a slight treble boost and earlier distortion. Good starting point is 11 o’clock.


ELECTRICAL SPECIFICATION

Supply voltage range: 7,5 to 18VDC

Current consumption: 5 mA at 9VDC

Input impedance: 260K

Output impedance: 25K Ohm’s

Complete bypass (true bypass)


POWER REQUIREMENTS
6F22 9V battery or DC eliminator 2.1 mm plug center negative and positive sleeve.


NOTES
RRB is protected against wrong DC eliminator polarity. The fuzzy sound is a sign of low voltage. Maintain recommended voltage for best results.



CONTROLS

GTR/BASS: Switch GTR for the guitar and BASS for the bass or you can choose which positions suits better for your instrument.
SENSITIVITY: Sets the filter trigger level, tune this carefully to fit your guitar/bass output and your playing touch. You can further change the sensitivity from your guitar volume knob while playing.
BIAS: Controls the filter resonance frequency. When Sensitivity is turned fully off the Bias can be used as a sweepable filter.
RESONANCE: Controls the sharpness or Q-factor of the filter.
DECAY: Controls how fast the filter frequency falls back to resting point (that is set with the Bias control). This can be set fast (CW) so you get the wah effect on every note or slow for a more traditional auto wah sound.

ELECTRICAL SPECIFICATION
Current consumption: approx. 15 mA
Input impedance: 500K Ohms
Output impedance: 1K Ohms
Supply voltage: 9VDC
Max input: -20 dBV
Complete bypass and input of circuit grounded when in bypass.

Power Supply included: No
