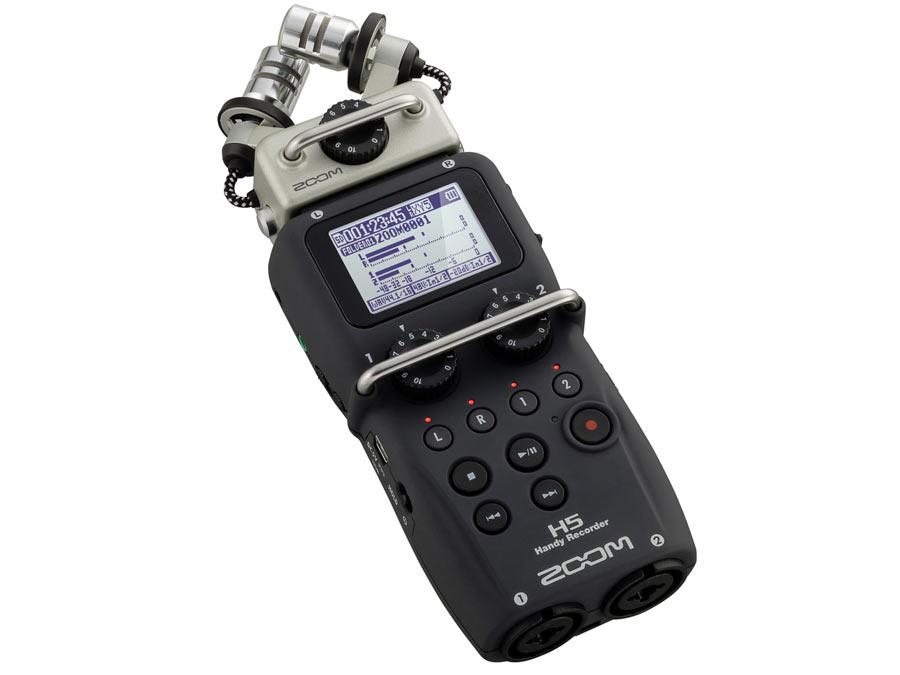

Zoom H5 Handy Recorder

Art.nr: H5
3.095,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Leverandørlager. 5-7 virkedager til lager.

Zooms produkter er i stadig utvikling for å tilfredsstille brukernes behov. Den tradisjonen fortsetter med H5.

  • H5 har 4 spors samtidig opptak. Lik H6 kan den bruke alle de utbyttbare kapslene til Zoom, slik at du kan velge riktig mikrofon til hvert opptak.
  • H5 gir deg alt du trenger til flerspors opptak, lyd til bilde, høykvalitets podcasting, broadcasting m.m.

H5 har et robust design perfekt for field recording. Den nye X/Y mikrofonkapselen, XYH-5, har to kondensatormikrofoner i shockmount som mimimerer vibrasjoner og håndstøy. Kroppen på H5 er utformet slik at den ligger meget godt i hånden, og alle funksjoner er lett tilgjengelig.

Highlights

  • Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera
  • Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted mics for reduced handling noise
  • Compatible with all Zoom input capsules
  • Four-track simultaneous recording
  • Large backlit LCD display
  • Records directly to SD and SDHC cards up to 32 GB
  • Up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
  • Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20 dB pad
  • Analog-style gain controls for each input
  • Protective "roll-bar" type covers prevent accidental movement of gain controls
  • Plug-in power (2.5 volts)
  • Built-in effects, including low-cut filtering, compression, and limiting
  • Chromatic tuner and metronome
  • Auto-record, Pre-record, and Backup-record functions mean that you'll never miss that perfect take
  • MS decoding
  • Multitrack to stereo internal mixdown
  • Normalize, Divide, and Trim editing
  • Voice memo and up to 99 marks per recording
  • A/B loop playback
  • Variable playback speed and variable pitch without affecting playback speed
  • Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
  • Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
  • Uses two standard AA alkaline or NiMH rechargeable batteries
  • Over 15 hours of operation with alkaline batteries

General

Recording media:

  • SD card: 16MB to 2GB , SDHC card: 4GB to 32GB

Display:

  • Backlit LCD (128 x 64 pixels)

Inputs

INPUTS L/R [XYH-5 X/Y mic]:

  • Mic type: Unidirectional
  • Sensitivity: -45 dB, 1 kHz at 1 Pa
  • Input gain: -8 to 52 dB
  • Max sound pressure input: 140 dB SPL

MIC/LINE IN :

  • Connector: 1/8" stereo mini jack
  • Input gain: - 8 to 52 dB
  • Input impedance: 2 k O or more
  • Plug-in power: 2.5V supported
  • Backup recording: -12dB lower than set L/R input gain

INPUTS 1/2:

  • Connectors: XLR / TRS combo jacks
  • (XLR: Pin 2 hot / TRS: Tip hot)
  • Input gain (PAD OFF): -8 to 55.0 dB
  • Input gain (PAD ON): -8 to 35.0 dB
  • Input impedance: 1.8 k O or more
  • Max input level: +22 dBu (PAD ON)
  • Phantom power: +12V /+24V /+48V
  • Equivalent Input Noise (EIN): -120 dBu or less

Outputs

LINE OUT :

  • Connector: 1/8" stereo mini jack
  • Rated output level: -10 dBm
  • Output load impedance: 10k O or more

PHONE OUT :

  • Connector: 1/8" stereo mini jack
  • Output Level: 20 W +20 W into 32 O load

Built-in speaker:

  • 400mw 8 O mono

Recording formats

STEREO MODE:

  • WAV (BWF-compliant)
  • Sampling frequency: 44.1/48/96 kHz
  • Bit rate: 16/24 (Stereo)
  • Maximum simultaneous recording tracks: 2

MP3

  • Sampling frequency: 44.1kHz
  • Bit rate: 48/56/64/80/96/112/32/160/192/224/256/320kbps

MULTITRACK MODE:

  • WAV (BWF-compliant)
  • Sampling frequency: 44.1/48 kHz
  • Bit rate: 16/24 (Mono/Stereo)
  • Maximum simultaneous recording tracks: 6 (L/R + INPUT 1/2 + L/R backup)

USB

Mass Storage Class operation:

  • Class: USB 2.0 High Speed

Audio Interface operation: Multitrack mode:

  • Class: USB 2.0 High Speed
  • Sampling frequency: 44.1/48kHz
  • Bit rate: 16/24 bit
  • Inputs / Outputs: 4 / 2

Audio Interface operation: Stereo mode:

  • Class: USB 2.0 Full Speed
  • Sampling frequency: 44.1/48kHz
  • Bit rate: 16 bit
  • Inputs / Outputs: 2 / 2

USB bus powered operation possible
(iPad operation supported in Stereo mode only)

Power Requirements

  • AA size (LR6) battery x 2
  • AC adapter: AD-17 (DC5V/1A/USB-type) (optional)
  • USB bus power
