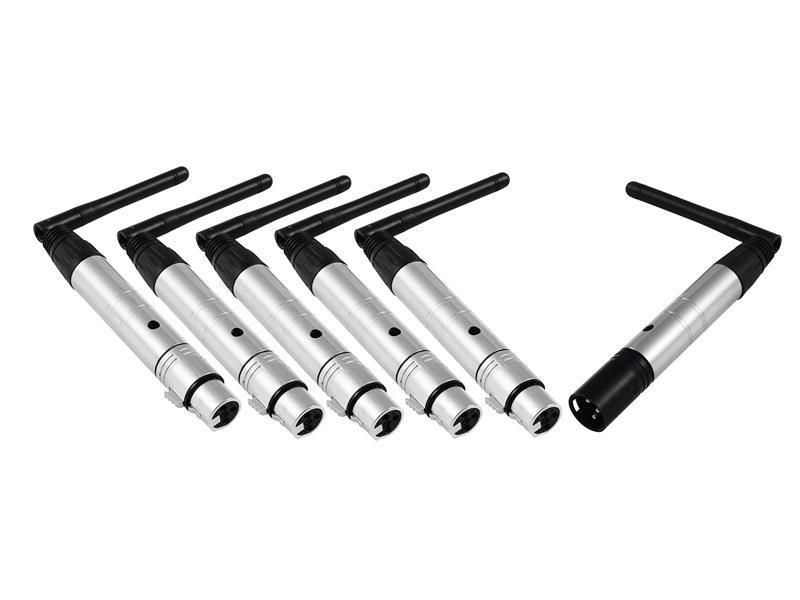

EUROLITE QuickDMX Wireless Transmitter
Wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR plug (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Powered via included PSU
- 2.4 GHz ISM band - license-free worldwide
- Can transmit up to 512 DMX channels
- Controlling by QuickDMX built-in
- Use a operating range up to 400m
70064701 EUROLITE QuickDMX Wireless Receiver
Compact wireless DMX receiver 2.4 GHz
- User-friendly 3-pin XLR plug (female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Powered via included PSU
- 2.4 GHz ISM band - license-free worldwide
- Can receive and process up to 512 DMX channels
- Controlling by QuickDMX built-in; DMX
- Use a operating range up to 400m
scrollToTab($el, previousTop)) }" class="flex sm:hidden justify-between cursor-pointer text-xl mb-2 py-2 __manufacturer_tab"> Produsent
Eurolite
scrollToTab($el, previousTop)) }" class="flex sm:hidden justify-between cursor-pointer text-xl mb-2 py-2 __custom_tab_1 __tab_tekniskespesifikasj"> Tekniske spesifikasj
- Weight:0.79 kg
- 70064700 EUROLITE QuickDMX Wireless Transmitter
- Power supply:100-240 V AC, 50/60 Hz
- 5 V DC 1 A
- IP classification:IP20
- DMX channels:Output 512
- DMX input:1 x 3-pin XLR (M)
- Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
- Control:QuickDMX built-in
- Carrier frequency:2.4 GHz
- Modulation:GFSK
- Parallel mode:Max. 6 transmitter
- Range:400 m
- Color:Silver
- Dimension:Length: 21.2 cm
- Diameter: Ø 1.8 cm
- Weight:0.15 kg
- 70064701 EUROLITE QuickDMX Wireless Receiver
- Power supply:100-240 V AC, 50/60 Hz
- IP classification:IP20
- DMX channels:Input 512
- DMX output:1 x 3-pin XLR (F)
- Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
- Control:QuickDMX built-in
- DMX
- Carrier frequency:2.4 GHz
- Modulation:GFSK
- Parallel mode:Max. 6 transmitter
- Range:400 m
- Color:Silver
- Dimension:Length: 21.2 cm
- Diameter: Ø 1.8 cm
- Weight:0.16 kg
