Martin Audio CDD15-WR kraftig værbestandig høyttaler

Art.nr: 8729837
35.750,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Martin Audio
Bestillingsvare. 7-8 dager til lager.

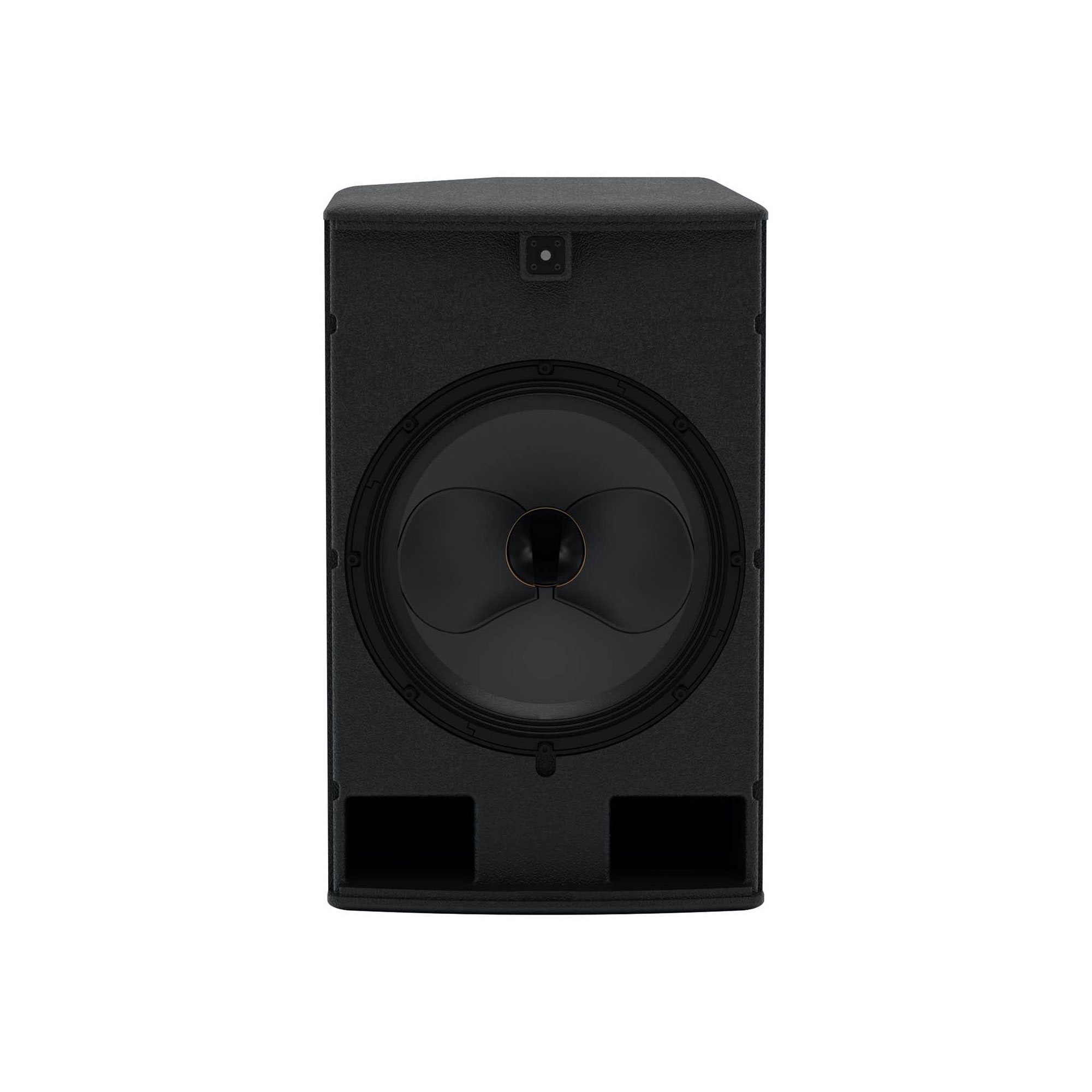

Martin Audio CDD15-WR kraftig værbestandig høyttaler

CDD15-WR er et svært kraftig, værbestandig, passivt toveissystem designet for utendørs installasjoner som krever det ultimate innen lydytelse fra et enkelt kabinett og egnet for applikasjoner der det vil være underlagt skiftende miljøforhold, men skjermet fra direkte eksponering for elementene.

CDD15 er ideell for middels til store rom, og er et passivt toveissystem med svært høy effekt designet for installasjoner som krever det ultimate innen lydytelse fra et enkelt kabinett. Den kombinerer svært høy utgangskapasitet med eksepsjonell troskap og dekningskonsistens. Dens koaksiale drivenhet består av en kraftig 15” (380 mm)/3” (75 mm) talespole LF-driver og en 1,4” (35 mm) utgangs-HF-kompresjonsdriver med en 3” (75 mm) ren titanmembran. CDD15-WR-alternativet gir værbeskyttet beskyttelse.

Features

  • Compact, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant UPM Formi composite enclosure
  • Outdoor operation when sheltered from direct exposure to elements
  • Operating temperature -20°C to +70°C
  • Environmentally tested to meet IP54
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free water and particle resistant grille
  • 8Ω nominal impedance
  • Integral inserts for eyebolt suspension
  • Black or white standard colour options



Applications

  • Live sound reinforcement
  • Theatre sound
  • Corporate AV events
  • Fixed installations in concert halls, ballrooms and HoW
  • ?
  • Bars and clubs

Acoustics

  • TYPE High-output, Coaxial Differential Dispersion powered two-way system
  • FREQUENCY RESPONSE (1) 55Hz – 20kHz ±3dB, -10dB @ 45Hz
  • DRIVER LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
  • HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver
  • INPUT SENSITIVITY -30dBu for 100dB SPL
  • MAXIMUM SPL (2) 126dB continuous / 132dB peak
  • DISPERSION 100°-60° horizontal, 60° vertical (user-rotatable)
  • CROSSOVER 1.5kHz Active LR8 with low latency HF FIR equalisation, Balance presets for pole mount/ pole mount with sub/ stage monitor

Module Audio input

  • CONNECTORS Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
  • ANALOGUE INPUT IMPEDANCE 20 kO balanced to ground
  • MAXIMUM ANALOGUE INPUT LEVEL 24.6 Vpp (+21dBu), over voltage protected
  • INTERNALPROCESSING Multi-channel DSP, programmable via TCP/IP using VU-Net software, PEQ/shelving filters, Up to 48dB/Oct HPF, Low latency HF FIR filters, Up to 200ms input delay, Pre-set selection via rear panel switch

Network

  • CONNECTORS 2xNeutrik® Ethercon
  • PROTOCOL TCP/IP and UDP/IP



Amplifier

  • TYPE 2 channel switch-mode, class D,, Bridged Tied Load + 1 channel switch-mode, class D
  • PEAK OUTPUT POWER 2500W total, 2000W LF, 500W HF
  • AVERAGE EFFICIENCY 89%
  • COOLING External convection cooled, with internal fan
  • MAXIMUM AMBIENT TEMPERATURE 40°C (104°F) for full output



Power Supply

  • TYPE Switch mode, fixed frequency with PFC
  • AC INPUT OPERATING RANGE 85 – 265V ~ AC, 50 - 60Hz
  • POWER FACTOR > 0.98
  • NOMINAL POWER CONSUMPTION 160W
  • MAINS CONNECTOR Neutrik® Powercon True1



Mechanical

  • ENCLOSURE Extensively braced multi-laminate plywood.
  • FINISH Textured black PU coating.
  • PROTECTIVE GRILLE HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth.
  • FITTINGS Top hat for pole mounting, 15 x M8 mounting points, Two side pocket handles, Optional weather protection cowl
  • IP RATING IP24 factory option available
  • DIMENSIONS (W) 427mm x (H) 696mm x (D) 422mm
  • WEIGHT 37kg (81.4lbs) excluding Transit cover
  • ACCESSORIES Transit Cover, Optional yoke and universal brackets

?
