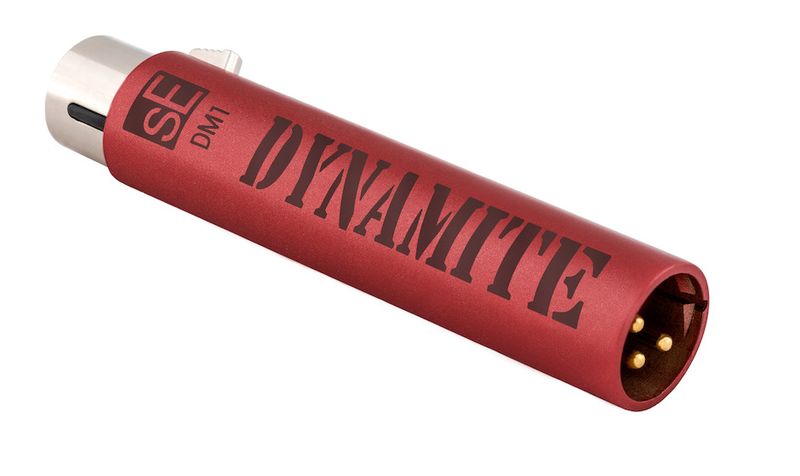

sE Electronics DM1 Dynamite

Art.nr: 1315910
1.050,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

sE Electronics
Leverandørlager. 7-8 virkedager til lager.
  • sE Electronics DM1 Dynamite
  • Cloudlifter

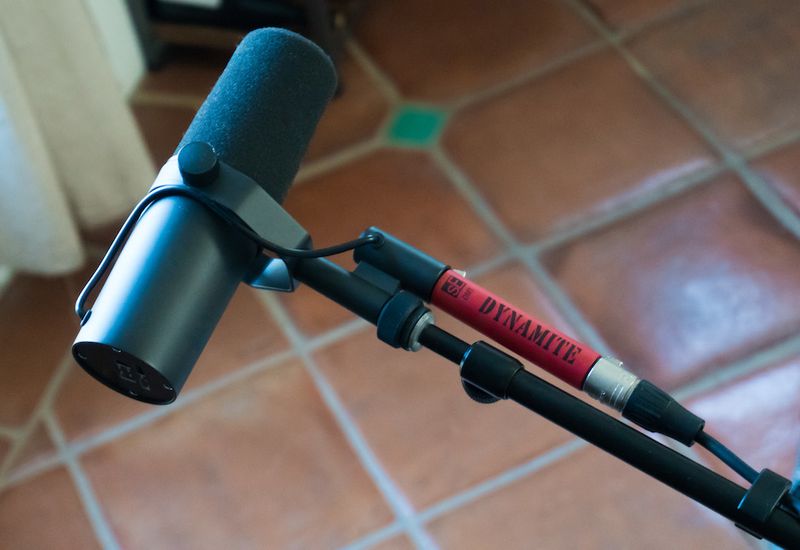

  • Aktiv inline preamp for passive mikrofoner, f.eks. Shure SM7B

NB! Mikrofonene på bildet følger ikke med.

LOT of gain

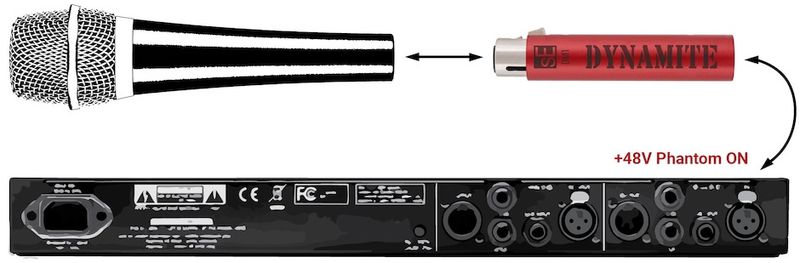

Some mics need a LOT of gain - and not all preamps are up to the challenge. The DM1 DYNAMITE is an ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones - perfect for podcasting, recording, or live sound.

With a sophisticated class-A design and specially-selected high-grade FETs, the DM1 has vastly lower output impedance and nearly half the noise of anything else on the market. Additionally, the gain it provides is always a consistent +28dB regardless of the connected load, thanks to its dedicated buffer amplifier.

designed for neutral, balanced sound quality

  • the perfect way to boost the signal of a passive microphone
  • gain stays consistent regardless of connected load
  • provides significantly improved level to your mic preamp for proper gain staging

SOPHISTICATED CLASS-A ELECTRONICS

  • state of the art electronics and high-grade FETs provide supremely low noise
  • transformerless design for pristine sound quality
  • provides the lowest noise in its class

DEDICATED OUTPUT BUFFER AMPLIFIER

  • provides +28dB output independent of load impedance or cable length
  • extremely low output impedance
  • drives long cable runs and can reduce susceptibility to RF interference, buzz & hum

SLIM, RUGGED ALL-METAL HOUSING WITH PREMIUM FINISH

  • efficient rejection of any electrical interference and noise
  • high-quality finish ensures a great look for many years
  • slim design allows for easy placement in the studio or on stage

GOLD-PLATED XLR CONNECTOR

  • for loss-free and reliable signal connection

SPECIFICATIONS

  • Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)
  • Gain: 28 dB (load 1kOhms)
  • Max output level (0.5% THD): 8.3 dBV (2.6 V)
  • Output noise level: 9 μV (JIS-A)
  • Powering: 48 Volts according toIEC 61938
  • Electrical impedance: 135 Ohms
  • Recommended load impedance: >1k Ohms
  • Current consumption: 3.0 mA
  • Connectivity: 3-pin male/female XLR connector
  • Dimensions: Diameter: 19 mm Length: 95.5 mm
  • Weight: 80 g
