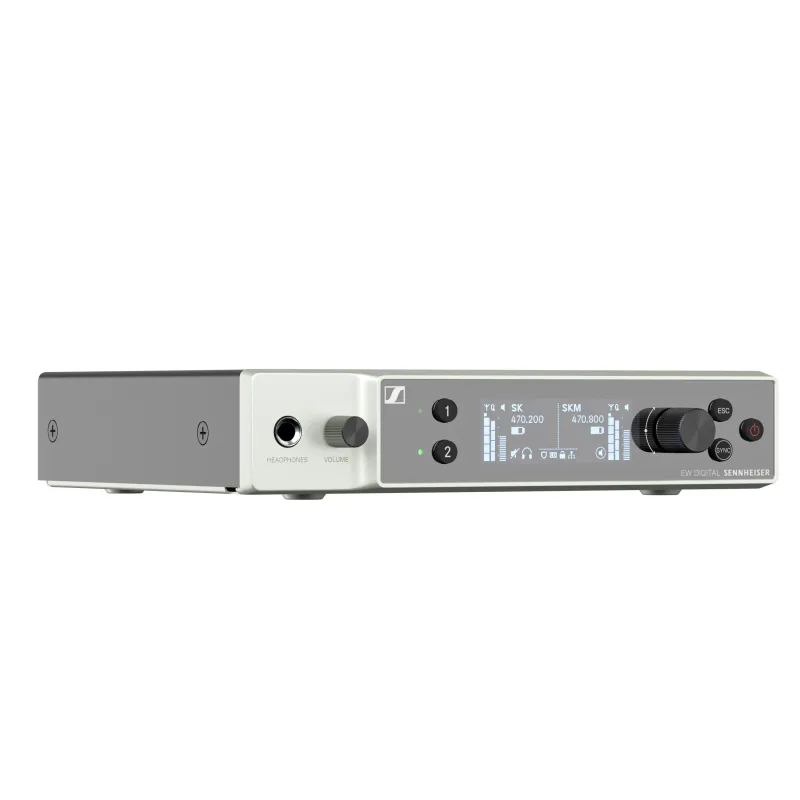

Sennheiser EW-DX EM 2 Trådløs Mottaker, (R1-9: 520 - 607.8 MHz)

Art.nr: 509343
12.199,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Sennheiser
Leverandørlager. 6-8 virkedager til lager.

Sennheiser EW-DX EM 2 Trådløs Mottaker - (R1-9: 520 - 607.8 MHz)

To-kanals digital halvrack-mottaker (9,5") for bruk med Evolution Wireless Digital håndholdte, bodypack- og håndholdt mikrofon. Utvidet 88 MHz svitsjbåndbredde, intermodulasjonsfri drift for opptil 293 kanaler med sikker AES-256-kryptering og redundant strømforsyning via Power over Ethernet (PoE).

Produktbeskrivelse

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. AutoScan quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely.



  • Two-channel digital half rack (9.5") in rugged metal housing

  • Up to 88 MHz switching bandwidth

  • Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)

  • 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)

  • Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels

  • Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in

  • Power over Ethernet (PoE IEEE 802.3af Class 3)

  • Ethernet connectivity (IPv4 and IPv6)

  • Secure transmission of confidential content using AES 256 encryption

  • AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge

  • Link Quality Indicator (LQI) showing the quality of the links separate to the RF levels

  • Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late 2023)

  • Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons

  • Selective headphone output with volume control on front panel

  • Extended menu settings such as custom frequency list, selectable sync parameter and walk test

  • External PSU 12V/1A

  • Worldwide usage (specific frequencies subject to local RF regulations)

Inkludert i esken :

  • 1 x EW-DX EM 2 receiver
  • 1 x wave antenna
  • 1 x rack mount kit
  • 1 x Power supply


Specifications

Audio link frequency ranges:

  • Q1-9: 470.2 - 550 MHz
  • R1-9: 520 - 607.8 MHz
  • S1-10: 606.2 - 693.8 MHz
  • S2-10: 614.2 - 693.8 MHz
  • S4-10: 630 - 693.8 MHz
  • U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
  • V3-4: 925.2 - 937.3 MHz
  • V5-7: 941.700- 951.800 & 953.050 - 956.050 & 956.650-959.650 MHz
  • Y1-3: 1785.2 - 1799.8 MHz


  • Bluetooth® Low Energy (BLE) frequency range
    2405 - 2480 MHz

  • Frekvensrespons lyd
    20 Hz - 20 kHz (-3 dB) @ 3 dBfs

  • Total harmonisk forvrengning (THD)
    ≤ -60 dB for 1 kHz @ -3 dBfs input level

  • Dynamic range
    134 dB

  • System Latency
    1.9 ms

  • RF technology
    Intelligent Switching Diversity

  • Operating temperature
    -10 °C - +55 °C (14 °F - 131 °F)

  • Operating relative humidity
    5 - 95 % (non-condensing)
