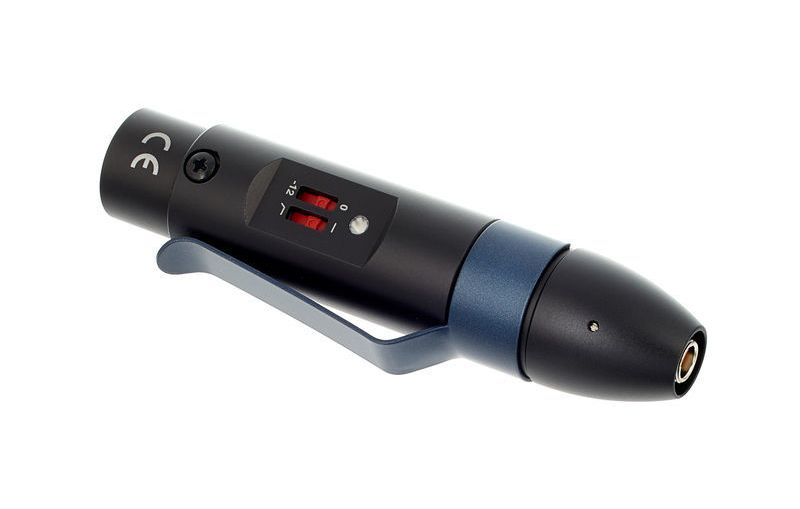

Sennheiser MZA 900 Phantom Power Adapter

Art.nr: 500226
2.100,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Sennheiser
Leverandørlager. 7-8 virkedager til lager.

Fantommatingsadapter for å kople elektret kondensatormikrofoner med 3,5 mm jackplugg til mikrofoninnganger. Låsbar 3,5 mm jack-kontakt. Robust chassis. Ideell ved bruk sammen med både kablet og trådløst utstyr.

The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 - 52 V phantom powering (P12 - P48). The connected microphone is supplied via the adaptor.

The phantom power adaptor is available in two different versions:

  • MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless)
  • MZA 900 P-4 with lockable 3-pin special socket

The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.

The MZA 900 P can also be used as a cable tester for XLR microphone cables.

Features

  • Robust metall chassis
  • Switchable gain (0/-12dB)
  • Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)
  • Two-colour control LED (phantom power, audio peak)
  • Input 3,5mm stereo jack socket, lockable
  • Output XLR-3M

Hva er med i esken?

  • MZA 900 P with belt clip
  • Instructions for use
  • Warranty certificatee

Technical Data

Gain

  • 0/-12 dB

Output voltage

  • 1,8V (P48), 0,6V (P12) @ 0dB gain

Phantom powering

  • P12 - P48, 10 - 52V, 2,6 - 2,8mA

Output impedance

  • 100 Ω

Dimensjoner

  • Ø 19/22 mm, L 100 mm

Vekt

  • 60 g

Operating temperature

  • -20.....+60 °C
