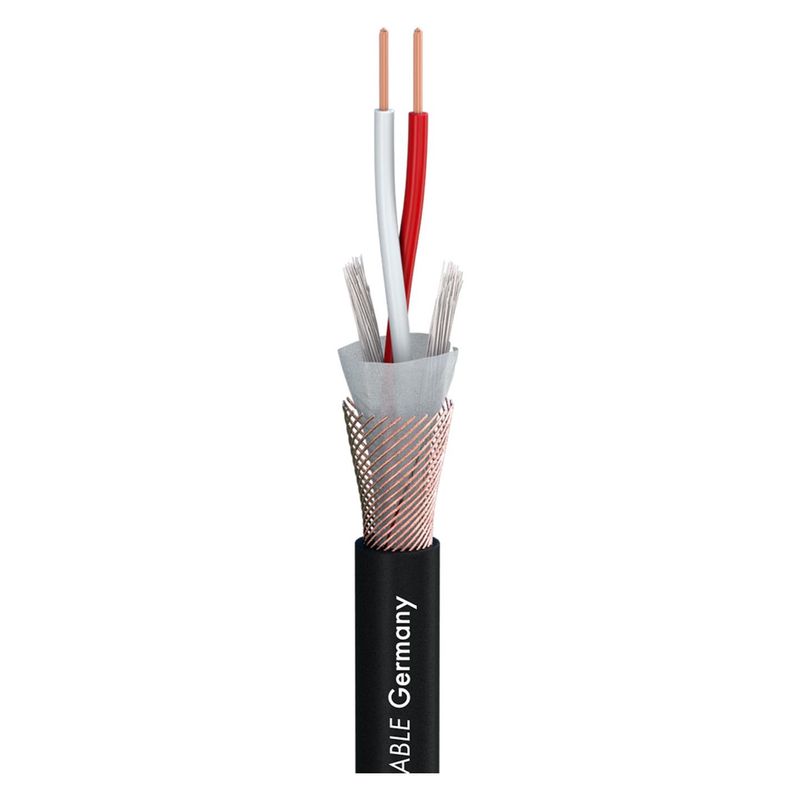

Sommer Binary 234 AES/EBU MKII DMX-kabel. 2 x 0,34 mm², PVC Ø 6,20 mm, sort

Art.nr: 141383
38,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Sommer Cable
Leverandørlager. 5-7 virkedager til lager

NB! pris pr. meter!

Swinging with your girlfriend...
like Tarzan in the jungle. With this cable you could just do that: it can take a lot of tugging, bending, and rough wear and tear. This is important when installing it in sharp-edged lighting trusses.

The Binary 234 AES/EBU MKII is an outstanding cable for the transmission of digital signals in the 110 O AES/EBU and DMX data format. Its shielding is provided by an aluminum-vaporised fleece and a helical copper mesh screen with 100 % coverage. So it offers a very good protection against electric and magnetic interferences. This cable ensures an error-free data transfer over distances of up to 1000 metres.

With the Binary 234 AES/EBU MKII you’ll be on the safe side.

Advantages:

  • AES/EBU- and DMX-conformant, highly flexible
  • Very good shielding due to the use of a helical copper mesh screen plus
  • an aluminium-vaporised fleece
  • Extremely rugged due to the special tough jacket
  • Only a little more expensive than a standard microphone cable

Application:

  • Networking of scanners, lighting systems, digital mixing consoles etc.
  • For indoor and outdoor installation
  • Connection of digital audio amplifiers, DAT recorders etc.



  • Name    Binary 234 AES/EBU MKII
  • EAN    4049371002349
  • Properties    Analog
  • Properties    Digital 110 O AES / EBU
  • Properties    OFC oxygen free copper
  • Application area    Studio / Broadcast
  • Application area    Mobile outdoor / indoor
  • Application area    ELA 100 V
  • Application area    Stage / live
  • Application area    Installation
  • Application    DMX
  • Colour    black
  • Colour detailed    black
  • Signal transmission    symmetrical
  • Construction    (2LI2Y0,34mm²)(ST)DY
  • Jacket material    PVC
  • Jacket Ø mm    6,20
  • Number of Channels (AES/EBU, DMX)    1
  • Inner conductor (AES/EBU, DMX)    2
  • Inner conductor (AES/EBU, DMX) mm²    0,34
  • Inner conductor Ø (AES/EBU, DMX) mm    0,66
  • AWG (AES/EBU, DMX)    22
  • Shielding    Copper spiral shielding + aluminum steamed fleece
  • Shielding factor %    100
  • Copper strands (AES/EBU, DMX)    19
  • Copper strand Ø (AES/EBU, DMX) mm    0,15
  • Conductor insulation material    Foam / Skin-PE
  • Conductor insulation Ø mm    1,50
  • Weight per 1 m g    50
  • UV-resistant    yes
  • Fire load per m kWh    0,17
  • Style variant    round
  • Packing    100 m spool
  • Temperature min. °C    -25
  • Temperature max. °C    70
  • Width mm    6,2
  • Height mm    6,2
  • Capac. cond./cond. per 1 m (AES/EBU, DMX) pF    63
  • Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF    19,2024
  • Capac. cond./shield. per 1 m (AES/EBU, DMX) pF    115
  • Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF    35,052
  • Impedance O    110
  • Insulation resist. per 1 km GO    1
  • Insulation resist. per 1000 feet GO    0,3048
  • Insulation resist. per 1 km (AES/EBU, DMX) GO    1
  • Insulation resist. per 1000 feet (AES/EBU, DMX) GO    0,3048
  • Conductor resistance per 1 km O    53
  • Conductor resistance per 1000 ft. O    16,1544
  • Shield. resistance per 1 km O    28
  • Shield. resistance per 1000 ft. O    8,5344
  • BPVo-Euroclass
