Tascam Series 208i lydkort

Art.nr: 114893
4.995,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Tascam
Leverandørlager. 8-10 virkedager til lager.

24-bit / 192 kHz USB sound card with 20 in / 8 out and powerful DSP


USB Audio/MIDI Interface With DSP Mixer (20 in, 8 out)
The SERIES 208i audio/MIDI interface is the right choice for professional studio and live recording. It provides up to 20 audio inputs and eight audio outputs to a Mac or Windows computer or an iOS device, for recording and playback at up to 192 kHz / 24 bit and with the superb audio performance one expects from Tascam. Controllable with included custom software, this versatile USB interface is equipped with a powerful DSP input and output mixer with built-in digital reverb, compressor, phase invert and four-band EQ for each channel. Having this processor included internally eliminates all latency issues and takes the load off the computer allowing it to process the audio more efficiently. A new USB driver offers very high stability, ensuring reliable performance throughout all phases of your projects.

The four analogue mic/line/instrument combo inputs are fitted with Tascam’s transparent, natural-sounding, low-noise Ultra-HDDA mic preamps and individually switchable phantom power (+48 volt). A maximum of 20 inputs (eight at 192 kHz) are available when using the two multi-channel optical ports which can accept up to 16 channels of audio input from a ADAT- or S/MUX-compatible devices. Eight balanced 6.3-mm line outputs enable multiple monitor mixes or up to 7.1 surround monitoring and there are dual headphone outputs with dedicated level control. Word clock input and output ensure correct synchronisation with other digital audio devices. And you can also connect your favorite MIDI devices to the rear-panel MIDI input and output to use them with your recording software.

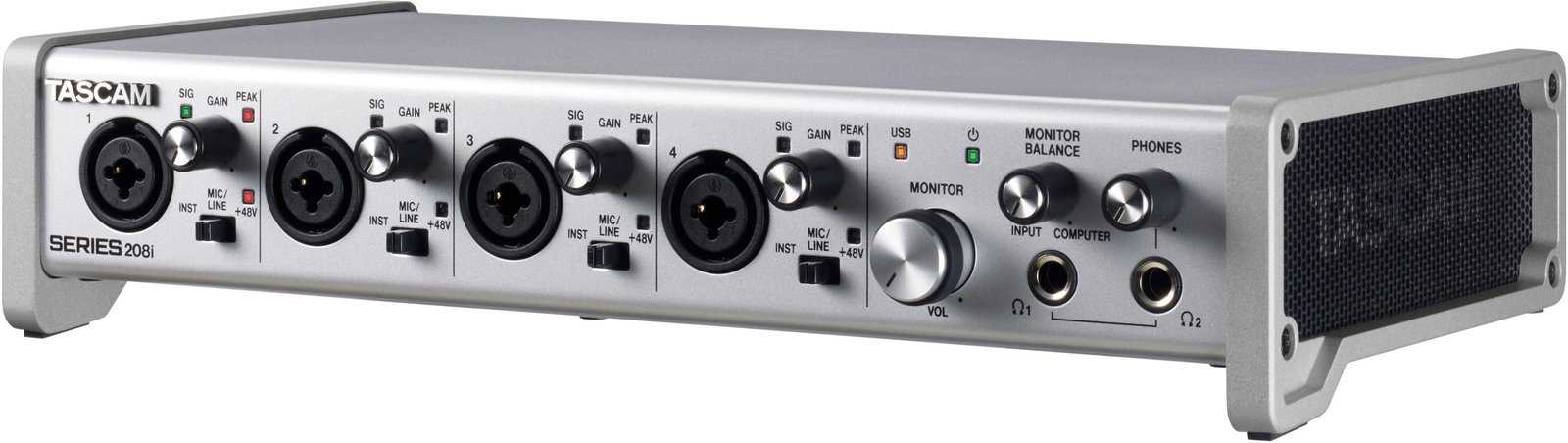

The angled tabletop design gives easy access to all front-panel controls. You can quickly adjust the monitor output level with a large front-panel Monitor knob, and use the handy Monitor Balance control to mix live input with computer playback for zero-latency overdubs.

Start Your Projects Immediately With Bundled Software

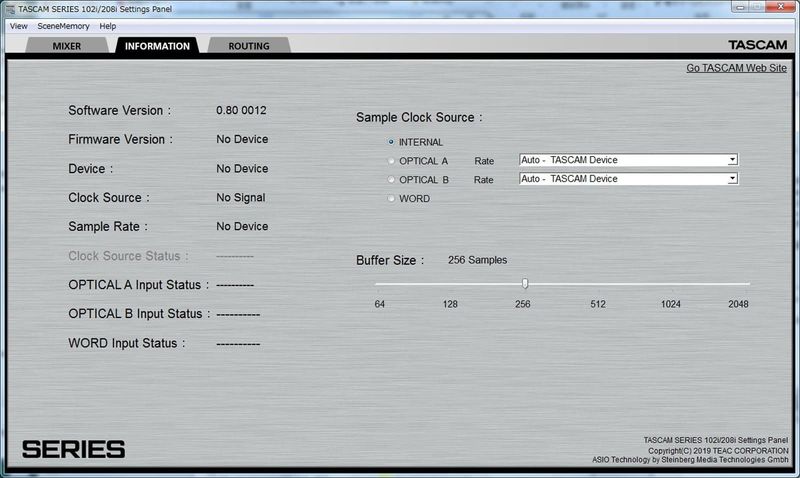

While free, easy-to-use Tascam control software helps you manage faders, processing and routing of any audio input (analogue, optical and USB) to any audio output, the interface comes also with Steinberg Cubase LE DAW software for Windows and macOS and Cubasis LE app for iPad. With IK Multimedia AmpliTube guitar effects/modeling software and T-RackS mastering software you get the tools you need to deliver high-quality, polished recording projects. The IK Multimedia software is provided in both free standing and plug-in versions for complete, versatile recording, mixing, and mastering.

iZotope award-winning plug-in included
Neutron Elements provides an easy, fast way to a professional mix – and it is included with every purchase of a Tascam SERIES interface. Neutron brings mix workflows to the 21st century with four modern mixing tools in one mothership plug-in, featuring mix assistance powered by machine-learning with unrivaled quality and speed

Expandable Input Capability to Grow Into
Easily add more input channels to accommodate future growth by using external microphone preamplifiers with S/MUX optical inputs to record drums, guitars, keyboards, vocals, and more. Each S/MUX optical port can accept up to 8 channels of audio input from an ADAT- or S/MUX-compatible device.

Dual Headphones Monitoring
The SERIES interface has two individual headphones amplifiers powerful enough for dual headphones monitoring.

Built-in DSP Effects and Processing
A DSP input and output mixer is complemented with digital reverb, compressor, phase invert and four-band EQ for each channel. Having this processor included internally eliminates all latency issues and takes the load off the computer allowing it to process the audio more efficiently.

Mobility
Tascam SERIES interfaces support tablets and other mobile devices and are compatible with many applications to meet your recording needs now and in the future.

Features:

Provides up to 20 audio inputs and eight audio outputs to a Windows or Mac computer or iOS device

Audio resolution up to 192 kHz / 24 bit

USB Audio Compliance 2.0 for iOS connection


Hardware features

Four analogue mic/line inputs on XLR/TRS balanced combo connectors

High-grade Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amps with ultra-low noise (EIN: –127 dBu)

High-quality audio input circuits for low-noise recording

Individually switchable 48-Volt phantom power on XLR inputs

Each TRS input can be switched to instrument-level for direct recording of guitar or bass

Gain controls, signal and peak indicators on each analogue input

Two optical multi-channel audio inputs for expansion by a maximum of 16 additional inputs

ideally suited for use with one or two Tascam SERIES 8p Dyna microphone preamplifiers

S/MUX format with support for high sampling rates (ADAT-compatible)

16 inputs at 44.1/48 kHz

8 inputs at 88.2/96 kHz

4 inputs at 176.4/192 kHz

Eight line outputs (balanced TRS)

Line outputs 1–2 can be used as monitor output with level control

Direct monitor option for low-latency monitoring

Monitor mix control for adjusting the level balance between signals from external devices and signals from the computer

Two 6.3-mm standard headphones outputs with level control (45 mW per channel)

Wordclock input and output for integration with other digital equipment

MIDI input, MIDI output

USB 2.0 computer connection

Power supply by dedicated PS-P1220E AC adapter (included)

Rugged all-metal chassis


Software features

In-house developed driver for Windows devices ensures stable operation with low latency

Built-in DSP with mixer, routing and effects accessible through dedicated settings panel

Compressor and 4-band EQ with low-cut filter on each input channel

Phase invert, Bypass, Solo, channel Link and Mute buttons on each input channel

Four Aux sends, switchable pre/post (Aux 1 used for internal reverb)

Reverb effect with five presets and adjustable pre delay, reverb time, diffusion and return level (Reverb can be used up to 96 kHz only)

Master section with Stereo fader, Aux Master controls and Mute button

Comfortable routing of output channels

Bundled with Cubase LE 9.5 (64-bit Windows application), compatible with Cubasis LE2

Bundled with iZotope Neutron 3 Elements, AmpliTube and T-Racks plug-in effects

Automatic update function available for software, driver and firmware updates

Compatible with major DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand etc.)


Specs:

General ratings

Sampling frequencies44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Quantization bit depth16/24-bit

Analogue audio inputs

Mic inputs (when the input switch set to MIC/LINE)XLR-3-31 (1: GND, 2: HOT, 3: COLD)

  Input impedance1.5 kΩ

  Nominal input level−64 dBu (0.0005 Vrms, GAIN knob at MAX)
−6 dBu (0.388 Vrms, GAIN knob at MIN)

  Maximum input level+10 dBu (2.45 Vrms)

  Maximum gain58 dB

Instrument inputs (when the input switch is set to INST)6.3-mm standard TS jack
(Tip: HOT, Sleeve: GND)

  Input impedance≥1 MΩ

  Nominal input level−64 dBV (0.0006 Vrms, GAIN knob at MAX)
−6 dBV (0.501 Vrms, GAIN knob at MIN)

  Maximum input level+10 dBV (3.162 Vrms)

  Maximum gain58 dB

Line inputs (when the input switch set to MIC/LINE)6.3-mm TRS jack
(Tip: HOT, Ring: COLD, Sleeve: GND)

  Input impedance10 kΩ

  Nominal input level−54 dBu (0.0015 Vrms, GAIN knob at MAX)
+4 dBu (1.228 Vrms, GAIN knob at MIN)

  Maximum input level+24 dBu (12.282 Vrms)

  Maximum gain58 dB

Analogue audio outputs

Line outputs (balanced)6.3-mm TRS jack
(Tip: HOT, Ring: COLD, Sleeve: GND)

  Output impedance230 Ω

  Nominal output level+4 dBu (1.228 Vrms)

  Maximum output level+20 dBu (7.75 Vrms)

Headphone outputs (PHONES)Standard 6.3-mm stereo jack

  Maximum output power (THD+N ≤0,1 %, 32 Ω)45 mW + 45 mW

Digital audio inputs/outputs

OPTICAL IN (S/MUX) connector(s)Optical (JEITA RC-5720C)

  Signal formatMulti-channel optical format
(Supports S/MUX when 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz.)

Other inputs and outputs

USB4-pin USB B-type

  Transfer rateUSB 2.0 Hi-speed (480 MBit/s)

MIDI input5-pin DIN

  FormatStandard MIDI format

MIDI output5-pin DIN

  FormatStandard MIDI format

WORD inputBNC

  Input voltage2.0 Vpp – 5.0 Vpp

  Input impedance75 Ω ±10%

Permitted frequency deviation during external synchronization±100 ppm

WORD outputBNC

  Input voltage2 Vpp (into 75 Ω load)

  Output impedance75 Ω ±10%

  Sampling frequencies44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz

Audio performance

Mic amp EIN (equivalent input noise)≤−129 dBu

Frequency response (mic/line input to computer)

  At 44.1/48 kHz20 Hz – 20 kHz, +0/–1 dB (JEITA)

  At 88.2/96 kHz20 Hz – 40 kHz, +0/–2 dB (JEITA)

  At 176.4/192 kHz20 Hz – 80 kHz (JEITA)

S/N ratio109 dB
(Mic input to Computer, Gain knob at minimum, 20-kHz low-pass filter, A-weighted)
110 dB
(Computer to Line output, MONITOR knob at maximum, 20-kHz low-pass filter, A-weighted)

Distortion (THD + N)0,0013 %
(Mic input to Computer, 1 kHz sine wave, Gain knob at minimum, 20-kHz low-pass filter)
0,0019 %
(Line input to Computer, 1 kHz sine wave, Gain knob at minimum, 20-kHz low-pass filter)
0,0014 %
(Computer to Line output, 1 kHz sine wave, MONITOR knob at maximum, 20-kHz low-pass filter)

Crosstalk≥100 dB
(MIC/LINE input to LINE output 1-2, 1 kHz sine wave, gain knob at minimum)

Computer system requirements

Windows

  Computer hardware requirementsWindows computer with a USB port that supports at least USB 2.0 or USB 3.0

  CPU/processor speed2 GHz or faster dual core processor (x86)

  Memory2 GB or more

Mac

  Computer hardware requirementsMac with a USB port that supports at least USB 2.0 or USB 3.0

  CPU/processor speed2 GHz or faster dual core processor

  Memory2 GB or more

iOS deviceApple iOS device running iOS 10 or later

Supported audio driversWindows: USB Audio Class 2.0, ASIO 2.2, WDM (MME), MIDI
Mac: Core Audio, Core MIDI
iOS device: Core Audio for iPhone

Power supply and other specifications

PowerDC 12 V AC adapter (PS-P1220E)

Power consumption14 W

Dimensions (W × H × D)296 mm × 65 mm × 160 mm

Weight1.6 kg

Permissible operating temperature range5–35 °C
