1 250,-
Ikke på lager
Informasjon
Zooms produkter er i stadig utvikling for å tilfredsstille brukernes behov. Den tradisjonen fortsetter med H5.
- H5 har 4 spors samtidig opptak. Lik H6 kan den bruke alle de utbyttbare kapslene til Zoom, slik at du kan velge riktig mikrofon til hvert opptak.
- H5 gir deg alt du trenger til flerspors opptak, lyd til bilde, høykvalitets podcasting, broadcasting m.m.

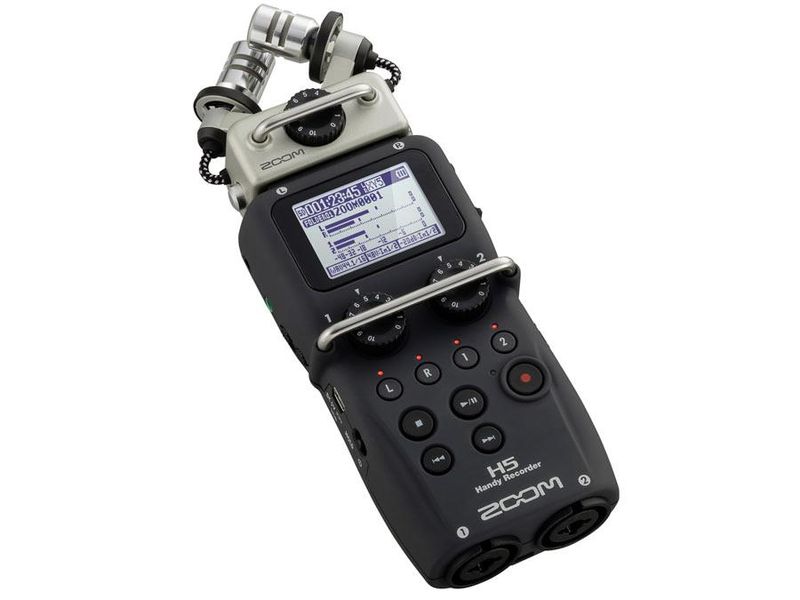

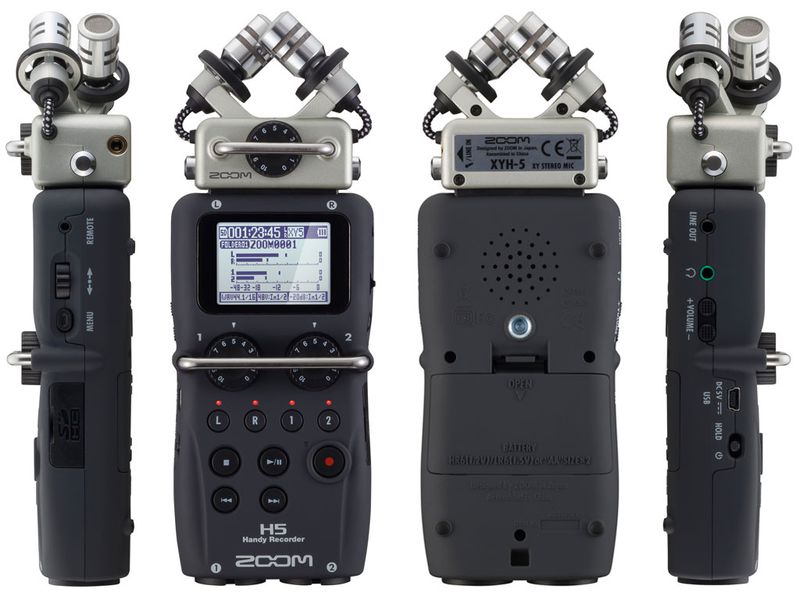

H5 har et robust design perfekt for field recording. Den nye X/Y mikrofonkapselen, XYH-5, har to kondensatormikrofoner i shockmount som mimimerer vibrasjoner og håndstøy. Kroppen på H5 er utformet slik at den ligger meget godt i hånden, og alle funksjoner er lett tilgjengelig.
Highlights
- Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera
- Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted mics for reduced handling noise
- Compatible with all Zoom input capsules
- Four-track simultaneous recording
- Large backlit LCD display
- Records directly to SD and SDHC cards up to 32 GB
- Up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20 dB pad
- Analog-style gain controls for each input
- Protective "roll-bar" type covers prevent accidental movement of gain controls
- Plug-in power (2.5 volts)
- Built-in effects, including low-cut filtering, compression, and limiting
- Chromatic tuner and metronome
- Auto-record, Pre-record, and Backup-record functions mean that you'll never miss that perfect take
- MS decoding
- Multitrack to stereo internal mixdown
- Normalize, Divide, and Trim editing
- Voice memo and up to 99 marks per recording
- A/B loop playback
- Variable playback speed and variable pitch without affecting playback speed
- Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
- Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
- Uses two standard AA alkaline or NiMH rechargeable batteries
- Over 15 hours of operation with alkaline batteries
Produsent
Zoom
Spesifikasjoner
General
Recording media:
- SD card: 16MB to 2GB , SDHC card: 4GB to 32GB
Display:
- Backlit LCD (128 x 64 pixels)
Inputs
INPUTS L/R [XYH-5 X/Y mic]:
- Mic type: Unidirectional
- Sensitivity: -45 dB, 1 kHz at 1 Pa
- Input gain: -8 to 52 dB
- Max sound pressure input: 140 dB SPL
MIC/LINE IN :
- Connector: 1/8" stereo mini jack
- Input gain: - 8 to 52 dB
- Input impedance: 2 k O or more
- Plug-in power: 2.5V supported
- Backup recording: -12dB lower than set L/R input gain
INPUTS 1/2:
- Connectors: XLR / TRS combo jacks
- (XLR: Pin 2 hot / TRS: Tip hot)
- Input gain (PAD OFF): -8 to 55.0 dB
- Input gain (PAD ON): -8 to 35.0 dB
- Input impedance: 1.8 k O or more
- Max input level: +22 dBu (PAD ON)
- Phantom power: +12V /+24V /+48V
- Equivalent Input Noise (EIN): -120 dBu or less
Outputs
LINE OUT :
- Connector: 1/8" stereo mini jack
- Rated output level: -10 dBm
- Output load impedance: 10k O or more
PHONE OUT :
- Connector: 1/8" stereo mini jack
- Output Level: 20 W +20 W into 32 O load
Built-in speaker:
- 400mw 8 O mono
Recording formats
STEREO MODE:
- WAV (BWF-compliant)
- Sampling frequency: 44.1/48/96 kHz
- Bit rate: 16/24 (Stereo)
- Maximum simultaneous recording tracks: 2
MP3
- Sampling frequency: 44.1kHz
- Bit rate: 48/56/64/80/96/112/32/160/192/224/256/320kbps
MULTITRACK MODE:
- WAV (BWF-compliant)
- Sampling frequency: 44.1/48 kHz
- Bit rate: 16/24 (Mono/Stereo)
- Maximum simultaneous recording tracks: 6 (L/R + INPUT 1/2 + L/R backup)
USB
Mass Storage Class operation:
- Class: USB 2.0 High Speed
Audio Interface operation: Multitrack mode:
- Class: USB 2.0 High Speed
- Sampling frequency: 44.1/48kHz
- Bit rate: 16/24 bit
- Inputs / Outputs: 4 / 2
Audio Interface operation: Stereo mode:
- Class: USB 2.0 Full Speed
- Sampling frequency: 44.1/48kHz
- Bit rate: 16 bit
- Inputs / Outputs: 2 / 2
USB bus powered operation possible
(iPad operation supported in Stereo mode only)
Power Requirements
- AA size (LR6) battery x 2
- AC adapter: AD-17 (DC5V/1A/USB-type) (optional)
- USB bus power
