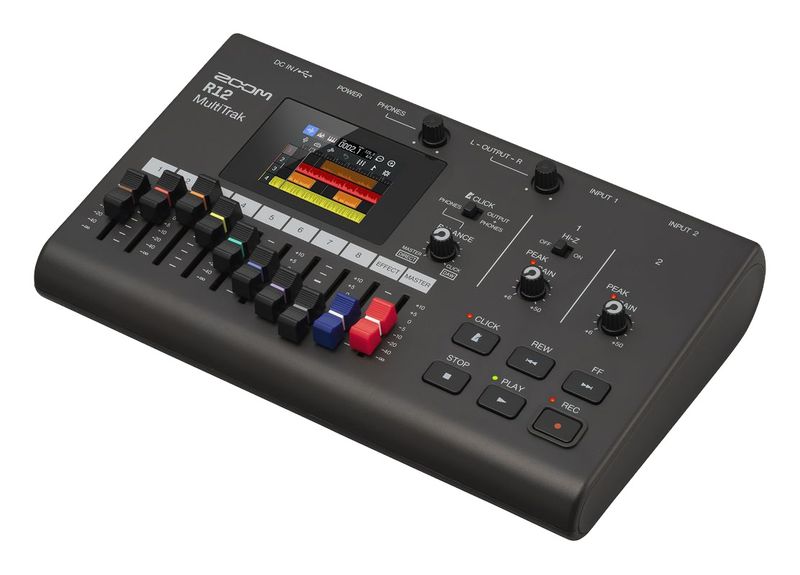

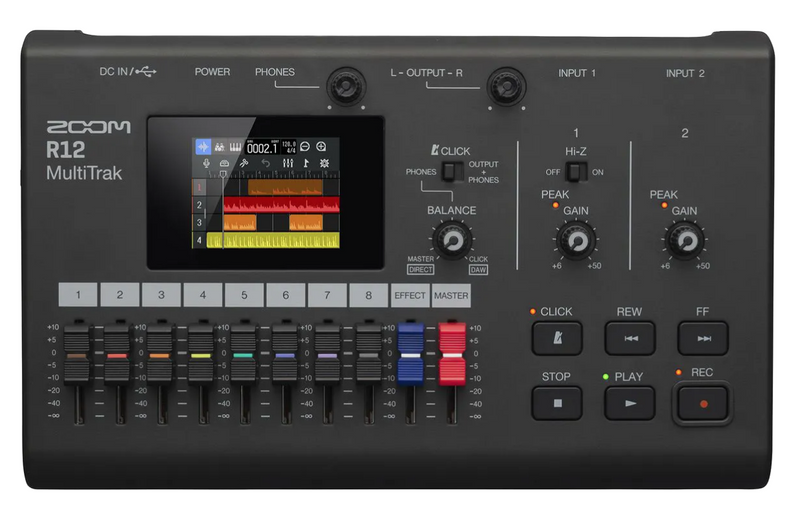

Zoom R12 Multisporsoptaker

Art.nr: R12
3.995,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Zoom
Leverandørlager. 5-7 virkedager til lager.

INPUTS/OUTPUTS

InputsMIC/LINE (mono)2

OutputsMASTER OUT1

 PHONES1

INPUTS

MIC/LINE (mono)Connectors2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT）

 Input gain+6 ~ +50 dB

 Input impedanceXLR: 3.9 kΩ TRS: 3.9 kΩ/1 MΩ (when Hi-Z ON, INPUT 1 only)

 Phantom power+48 V (switchable separately for INPUTS 1 and 2)

 Equivalent input noise–121 dBu or less (IHF-A) at +50 dB/150 Ω input

 Frequency response−1.0/+0.5 dB: 20 Hz – 20 kHz

OUTPUTS

MASTER OUTConnectors2 TRS phone jacks (balanced)

 Maximum output level+14 dBu

 Output impedance200 Ω

PHONESConnectors1 stereo 3.5mm mini jack

 Maximum output level45 mW + 45 mW (into 32 Ω load)

 Output impedance10 Ω

RECORDER

 Maximum simultaneous recording tracks2

 Maximum simultaneous playback tracks8

 Recording format44.1kHz, 16/24-bit, mono/stereo WAV

 Recording mediaCards compatible with microSDHC specifications 4 GB – 32 GB

  Cards compatible with microSDXC specifications 64 GB – 1 TB

TRACK SETTINGS

 EQHigh: 10 kHz, ±12 dB, shelving

  Middle: 2.5 kHz, ±12 dB, peaking

  Low: 100 Hz, ±12 dB, shelving

 PanL100 – R100

EFFECTS

 Input DynamicsComp/Limiter/Gate

 Patch memory effects3 types can be used simultaneously

  50 patch memories

  Guitar Lab supported

  Can be assigned and used as an insert (input) or send effect

 Dedicated send effects10 types of spatial effects

TUNER

 Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD

CLICK (METRONOME)

 Time signatures3/4, 4/4, 6/8

 Tempo range40.0 – 250.0 BPM

RHYTHM LOOPS

 Sound source formatPCM

 Number of loops150

SYNTH

 Sound source formatFM

 Polyphony8

 Number of sound types18 (and a PCM drum kit)

DISPLAY

 2.4" (320×240) full-color touchscreen LCD

USB

USB

Connector USB Type-C

  Note: Use a USB cable that supports data transfer. USB bus power is supported.

Audio interface function2-in/2-out or 2-in/2-out (iPad)USB 2.0 Full Speed

  44.1 kHz, 16/24-bit

 2-in/4-outUSB 2.0 High Speed

  44.1 kHz, 16/24-bit

Mass storage functionDeviceUSB 2.0 High Speed (5 V/200 mA power supplied when host)

Guitar Lab connection USB 1.1 Full Speed

DAW connection (control surface) USB 1.1 Full Speed

Mass storage functionHostUSB 2.0 High Speed (5V/200 mA power supplied)

USB MIDI keyboard connection USB 1.1 Full Speed (5 V/200 mA power supplied)

POWER

POWER

 Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)

 AC adapter: ZOOM AD-17 (5V/1.0A)

ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES

 During playback with +48V off and 32Ω headphone load

 Alkaline batteries: about 5 hours

 NiMH batteries (1900 mAh): about 5 hours

 Lithium batteries: about 11 hours

 • The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

POWER CONSUMPTION

 5 W maximum

DIMENSIONS

 256 mm (W) × 158 mm (D) × 61 mm (H)

WEIGHT (including batteries

 827 g

Note: 0 dBu = 0.775 Vrms
