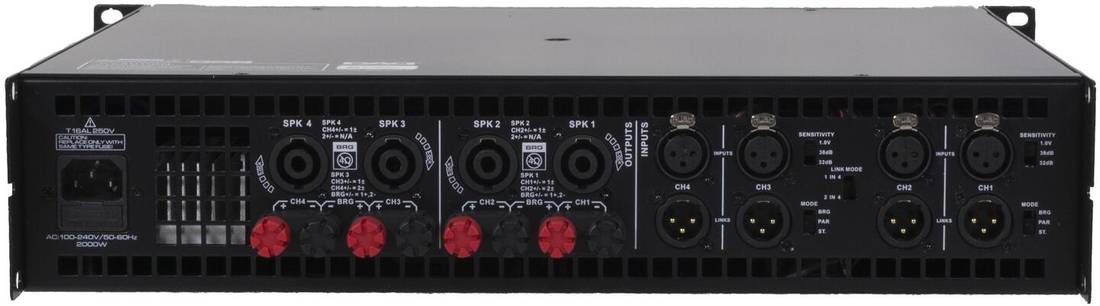

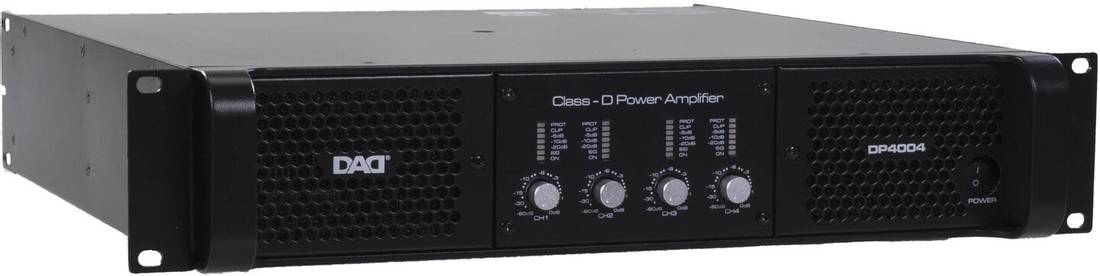

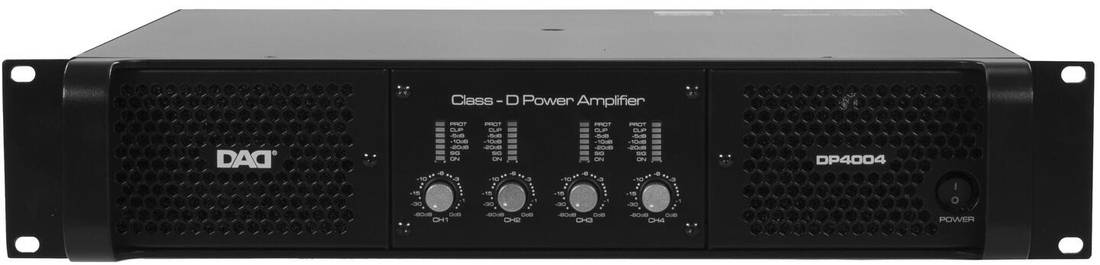

DAD DP4004 Forsterker 4x1100W @ 4ohm. Bridge mode 2x2000W @ 8 Ohm

Art.nr: DP4004-ML
27.531,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

DAD
Leverandørlager. 5-7 virkedager til lager

The innovative DAD’s D-class DP amplifiers series uses an advanced design that drastically reduces the weight and dissipation of heat. Efficiency between energy consumption and output available the power is 95%. The amplifiers of DP series are designed with a new high audio resolution D-class typology.

These revolutionary amplifier series provide a superior quality sound and an unequalled reliability. Protection circuits allow greater efficiency under difficult loads and power conditions. In other words, an amplifier that doesn’t hurt nor your budget nor your back!

Features:
With a single channel power of 650/1100 W 8/4 Ohm, new DP4004 Class D is the best solution for sound applications that require a multi-channel amplifier of average power with a great sound at affordable price.
Thanks to Universal technology, regulated switch mode with PFC (Power Factor Correction) it allows performances with supply voltages from 90V to 260V.

AMPLIFIER

  • Channels: 4
  • Circuit class: digital

OUTPUT

  • Single channel power: 650/1100W 8/4 Ohm
  • Bridge mode power: 2x2000W 8 Ohm

AUDIO SPECIFICATIONS

  • Frequency responce: 20 - 20000Hz @ 8 Ohm (±0.5 dB)
  • THD+N: <0.15%
  • Slew rate: >10V/µs @ 8O
  • Damping factor: >500
  • Input impedance: 10kO
  • Signal/Noise rate: >100dB

POWER SUPPLY STAGE

  • Type: Universal, regulated switch mode with PFC
  • Operating voltage/frequency: 100-240V ±10%, 50-60Hz

PROTECTIONS

  • Output: Soft-start, short circuit, DC, overheat
  • Input: Clip/limit, progressive volume

FUNCTIONS

  • Input mode: stereo, parallel, bridge / limiter
  • Input sensitivity/gain: 1Vrms/32dB/38dB

INDICATORS

  • Indicators: 4 x LED bar - signal level and over temperature protection

INPUT/OUTPUT CONNECTORS

  • Input signal: XLR in/out
  • Output signal: 4 x 4 pole, binding post
  • Power connection: VDE

PHYSICAL

  • Cooling: forced air with low noise fan
  • Dimensions (WxHxD): 483x89x435mm
  • Rack unit: 2
  • Weight: 9.5kg
