DV Mark AC 101H akustisk gitarforsterker

Art.nr: 162407
14.350,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

DV Mark
Leverandørlager. 5-7 virkedager til lager.

AC 101 H

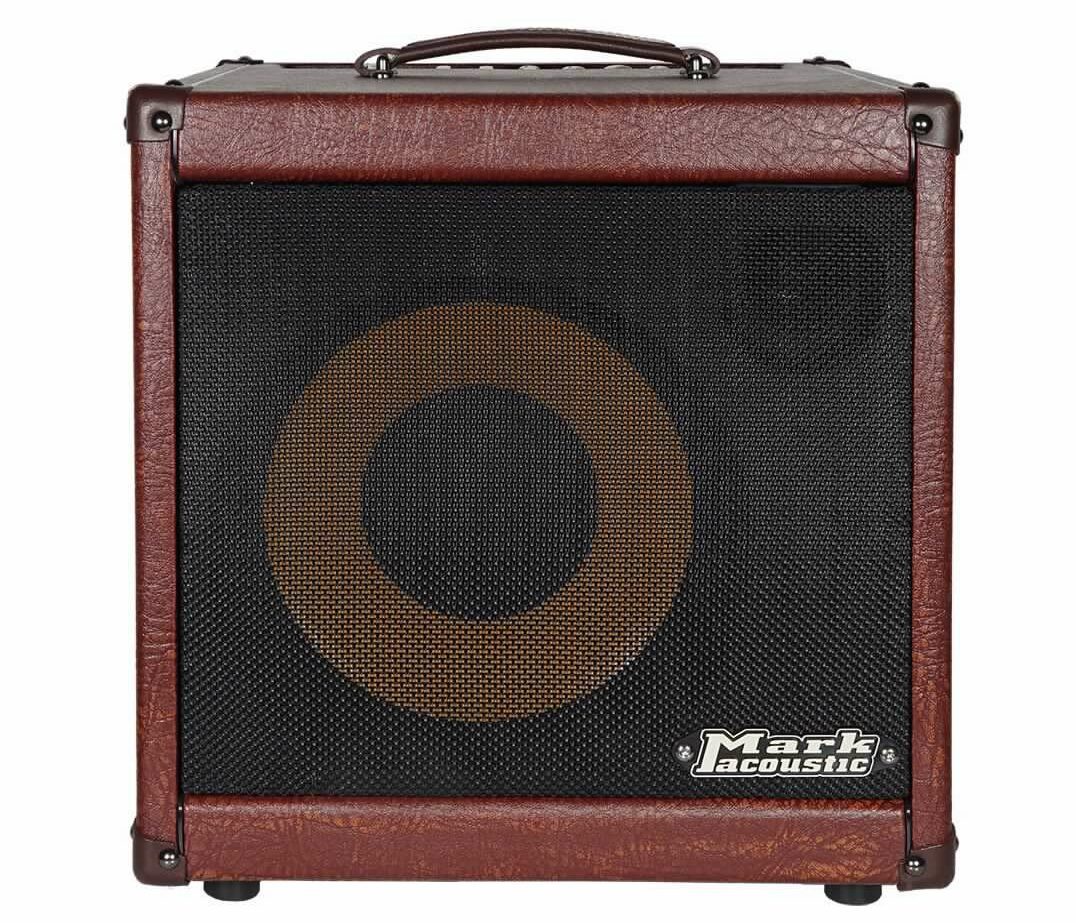

Impressive musical clarity, tonal flexibility, satisfying bottom end from our 10" custom speaker and smooth and crisp highs from the 1" voice coil tweeter of the Markacoustic AC 101H —now with a new brown cool look— make it the ideal amp for a wide range of acoustic instruments, from acoustic guitar to acoustic bass, harp, cello, accordion, etc.

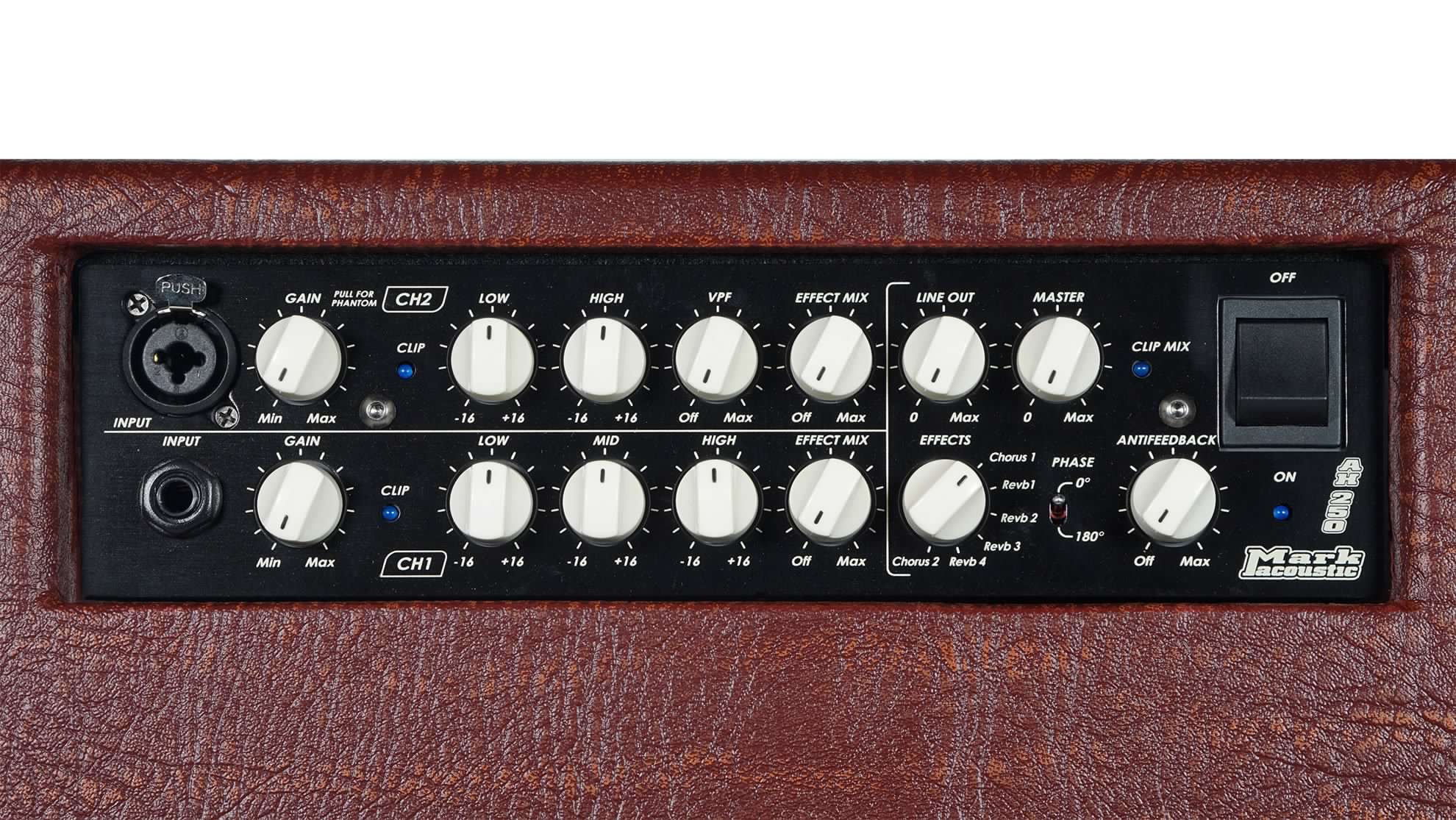

The AC 101H includes all the features that acoustic musicians need: 48V phantom power for use with condenser microphones, etc., feedback control and phase reverse to easily manage feedback problems and capture the true essence of your acoustic sound while also providing you with serious headroom, pre/post EQ switch for the XLR DI, FX send/return, tuner out and a next generation of digital reverb and chorus, sweet sounding, warm and natural.

Note: Markacoustic amps/combos are manufactured to be sold and used in the country of purchase, and they are factory preset to that country’s voltage. Due to homologation issues, the voltage may not be changed.

https://www.dvmark.it/product/ac-101-h/

SPECIFICATIONS:

Power

150w
Series

Markacoustic
Speaker config

1x10" + voice coil
Size

S
Preamp

Solid state
Power amp

Mpt
Channels

One



TECHNICAL FEATURES

INPUTS
CH 1: Impedance 500 Kohm/  Maximum Vpp: 10
CH 2: Impedance  500 Kohm/  Maximum Vpp: 10
BALANCED CH2: Impedance  500 Kohm/  Maximum Vpp: 20
RETURN: unbalanced, Impedance 33  Kohm// Max 10Vpp


CONTROLS CH1
GAIN: -45dB ¸28 dB
EFFECT MIX (onboard effect only)
EQUALIZER
LOW: Level ±16 dB (40 Hz)
MID:  Level ±16 dB (600Hz)
HIGH: Level ±16 dB min  (6 KHz)

CONTROLS CH2
GAIN: -43dB ¸ 26 dB
PHANTOM: 48VDC
EFFECT MIX (onboard effect only)
EQUALIZER
VPF: Center Frequency (380 Hz)
LOW: Level ±16 dB  (60 Hz)
HIGH: Level ±16 dB min at (5 KHz)

OTHER CONTROLS
PHASE: 0°, 180°
ANTIFEEDBACK: 20Hz (off), 400 Hz

OUTPUTS
SEND: unbalanced, Max Voltage 20Vpp (Pre Equalization)
TUNER OUT: unbalanced, Max Voltage 2Vpp
LINE OUT XLR DI: balanced, Max Output: 20 Vpp

SPEAKER
1×10″
TWEETER
new 1″ voice coil tweeter

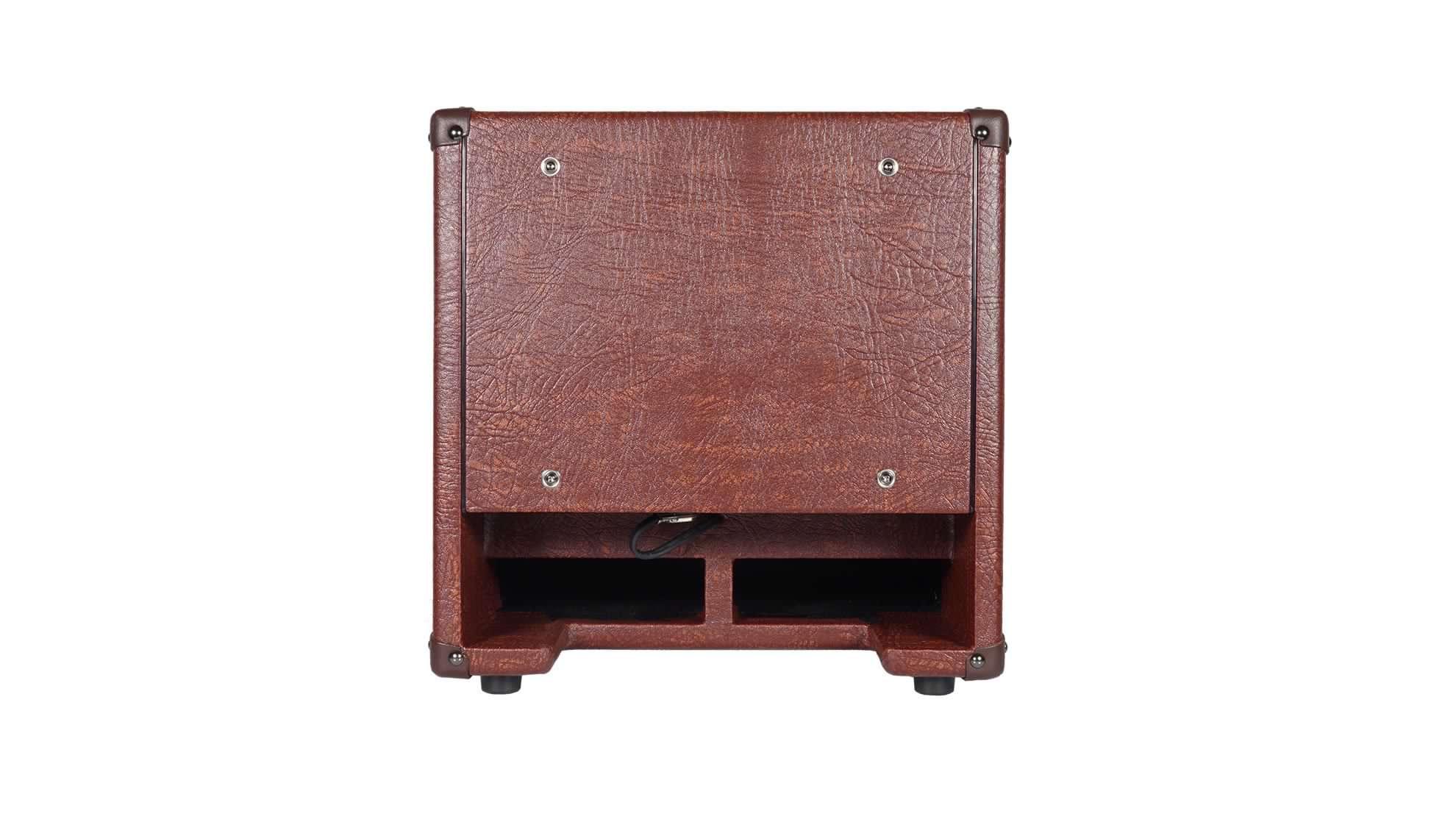

BASS PORT
rear
IMPEDANCE
8 ohms
SENSITIVITY
101 dB SPL
SPEAKER POWER HANDLING
200W RMS (AES Standard)

AMP OUTPUT POWER
(analog) 250W @ 4 ohm / 150W @ 8 ohm
FREQUENCY RESPONSE
45 Hz to 20 kHz
CROSSOVER FREQUENCY
3.5 kHz
