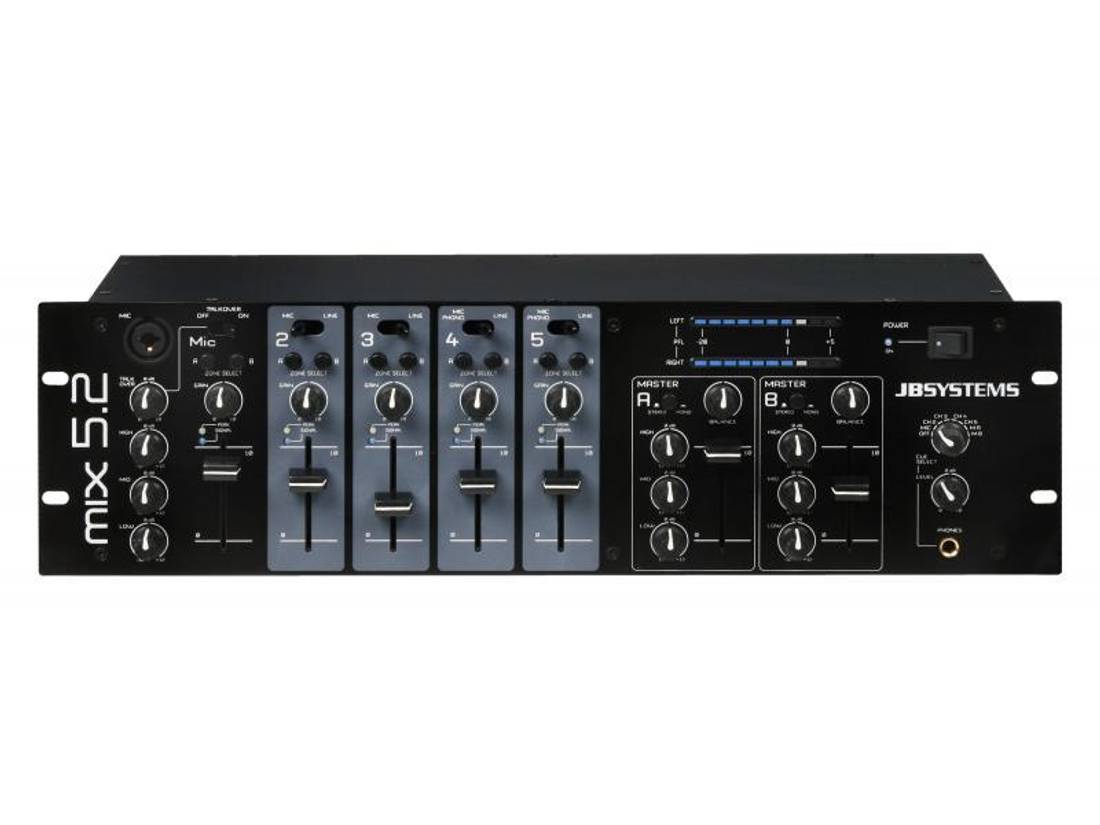

JB systems MIX 5.2 sonemikser. 2 soner (balansert), 11 innganger

Art.nr: MIX 5.2-JB
3.745,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

JB Systems
Leverandørlager. 5-7 virkedager til lager

Description
2 Independent Zones, each with balanced XLR-output (+unbalanced on cinch)
Each zone has 3band tone controls, balance, volume and mono/stereo switch
11 inputs on 5 Channels (5 balanced mic + 4line + 2phono)
1Microphone with 3band tone control and zone assignable adjustable talkover.
Every Channel can be assigned to zone A, zone B or both.
Every Channel has individual peak and signal present leds.
Gain levels and 45mm faders on all channels
PFL with rotary selector, cue level adjustment and 6.3mm headphones jack.
2 independent record outputs without Channel1 microphone and free from talkover muting
Technical Information
Mic Input 1,5mV/10kOhm
Phono Input 3mV/47kOhm
Line Input 150 mV/22 kOhm
S/N Ratio >85 dB/1 kHz
Master A/B Output 1,5V/4 kOhm unbalanced
850mV/600 Ohm balanced
Frequency Response20-20.000 Hz (±2dB)
Tone Control -12 dB, +12dB Phones 1V/32 Ohm
Dimensions (mm) 134/H x 483/W x 130/D (19"/3U)
