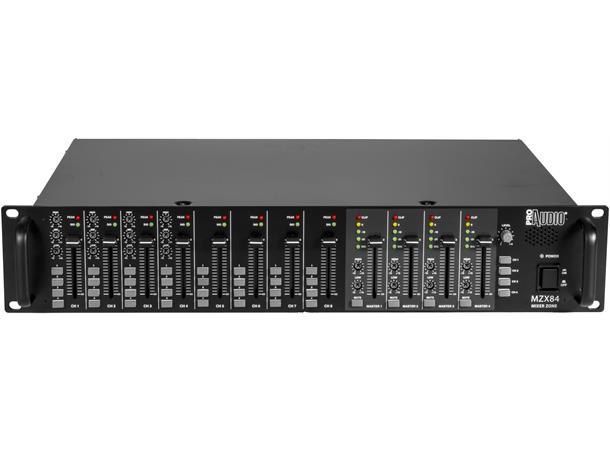

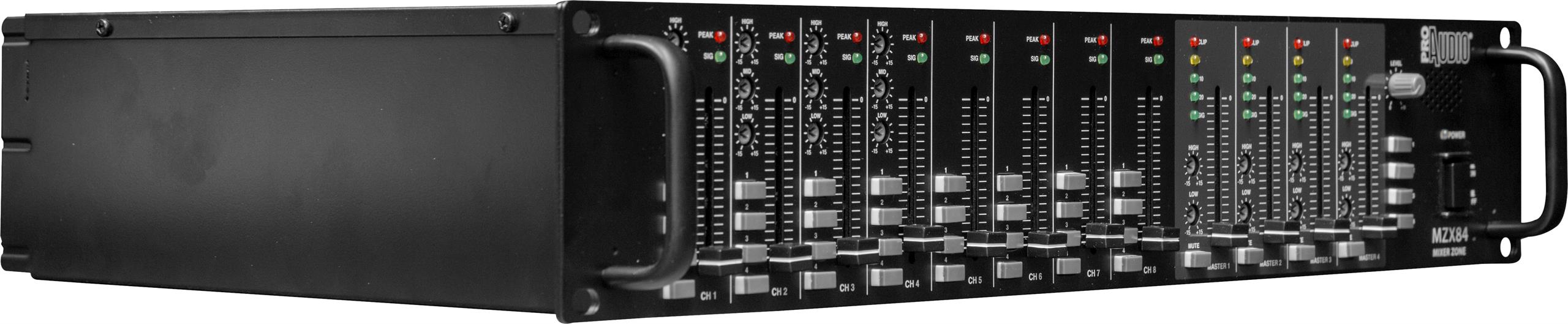

Proaudio MZX84 Sonemikser, 4 soner. 8 inn/4 ut. 19"/2U

Art.nr: MZX84-ML
8.584,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Proaudio
Leverandørlager. 5-7 virkedager til lager

MZX84 is a 4-zone mixer, 2U rack, equipped with 8 inputs and 4 assignable outputs.



Features:
It is suitable for installations where specific sound is required on different areas.
The mic 1,2,3,4, inputs have phantom power and priority function.
Gain adjustment trimmer on each channel and 3-band tones control for 1-4 channels.
Outputs with LED indicators and 2-band tones control.
Zone audio monitoring through transducer on.
Remote zone control with WP-1.

MATRIX MIXER
Channels: 8 input - 4 output

AUDIO SPECIFICATIONS
Output level/impedance: 0dB/600Ohm balanced
Frequency responce: 20- 20000Hz @ 8 Ohm (±0.5 dB)
THD+N: <0.1%
Input impedance: 20kO
Signal/Noise rate: >90dB

POWER SUPPLY STAGE
Type: Switching
Operating voltage/frequency: 100/240V, 50/60Hz

FUNCTIONS
Input sensitivity: mic. (-50dB ~ -6dB), line (-30dB ~ +14dB)
Remote control: 0dB/600Ohm balanced
Tone controls input: 80 Hz, 2.5kHz, 12kHz (±15dB)
Tone controls output: 80 Hz, 12kHz (±15dB)
Phantom power: ch1 - ch2/3/4 +15

INDICATORS
Indicators: sig, peak for each in and sig, -20dB, -10dB,0dB - clip for each out

INPUT/OUTPUT CONNECTORS
Input signal: XLR/Jack bal. pin RCA unbal
Output signal: molex
Data: RJ-45
Power connection: VDE

PHYSICAL
Dimensions (WxHxD): 482x88x320mm
Rack unit: 2
Weight: 3.9kg
