QSC E112 400W/1600W

Art.nr: E112-BK
9.599,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

QSC
Leverandørlager. 8-10 virkedager til lager.

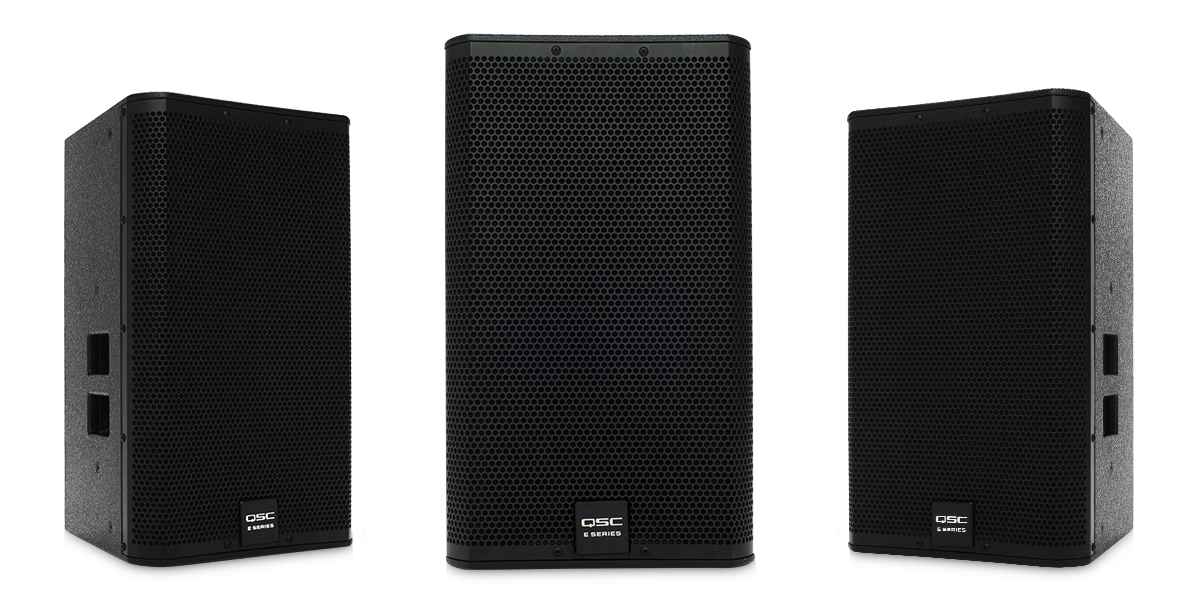

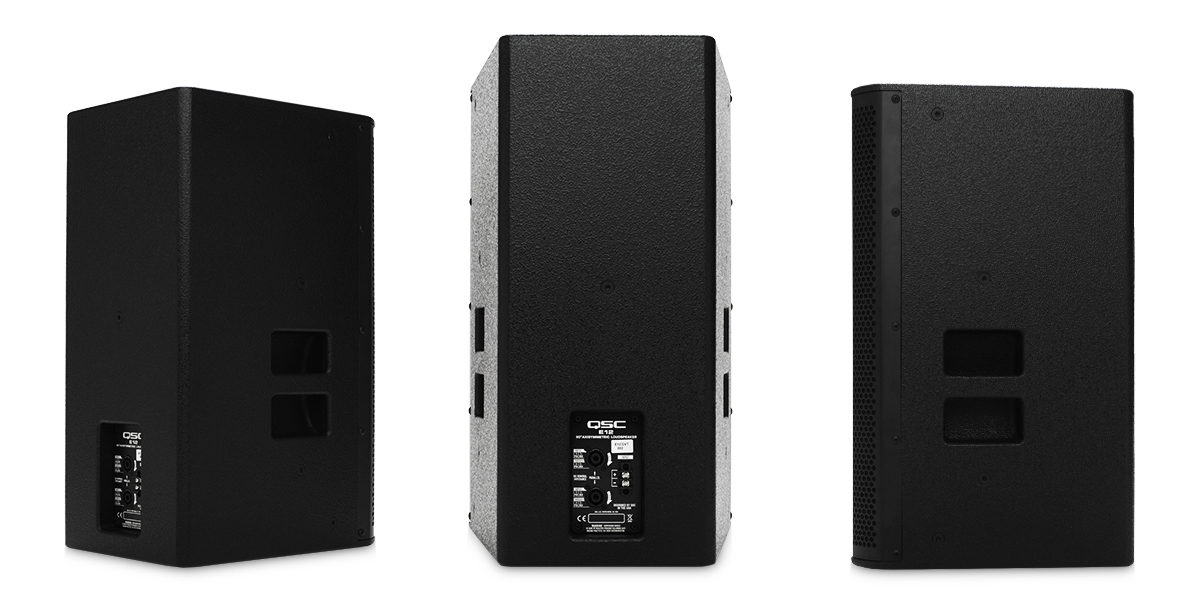

QSC E112 400W/1600W

The E112 is a trapezoidal, two-way loudspeaker using a 12-inch die cast aluminum woofer with a 3-inch voice-coil. The 15mm, 11-ply enclosure provides enough volume to deliver solid low-frequency extension down to 65 Hz making it an excellent choice for applications in which space or budget preclude the use of a subwoofer. The DMT coverage angle of 85° is ideal for most medium and medium-long throw applications.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

Features

  • High output, professional quality sound with 400 W continuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Available U-Style Yoke and M10 rigging kit for permanent installation
  • Dual angle pole socket
  • Model    E112
  • Configuration    1 × 12-inch, 2-way, non-powered
  • Frequency Response (-6 dB)    64 Hz – 20 kHz
  • Frequency Range (-10 dB)    46 Hz – 20 kHz
  • Power capacity (1): continuous/peak    400 W / 1600 W
  • Sensitivity    96 dB, 1 W @ 1 m
  • Coverage Angle    85° conical DMT™
  • Output (2) (peak SPL @ 1m)    128 dB
  • Drivers
    • LF - 305 mm (12 in) driver with 76 mm (3 in) voice coil
    • HF - 25 mm (1 in) exit, 45 mm (1.75 in) voice coil, compression driver
  • Nominal Impedance    8Ω
  • Cross-over    Full range only, 1.8 kHz
  • Input Connections    2 × NL4, 1 × barrier strip
  • Enclosure    Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining.
  • Speaker Dimensions
  • (W×H×D)    360 × 616 × 371 mm
  • 14.2 × 24.2 × 14.6 in

Carton Dimensions

  • (W×H×D)    460 × 460 × 712 mm     18 × 18 × 28 in
  • Net Speaker Weight    23 kg / 51 lb
  • Shipping Weight    25.4 kg / 56 lb


(1) Power that the device can withstand for two hours without permanent change in acoustical, mechanical, or electrical characteristics, greater than 10%, using IEC60268 noise based on nominal impedance in the cabinet with crossover, full range 30 Hz 12 dB/octave.
(2) With QSC Processing

*Specifications subject to change without notice.
