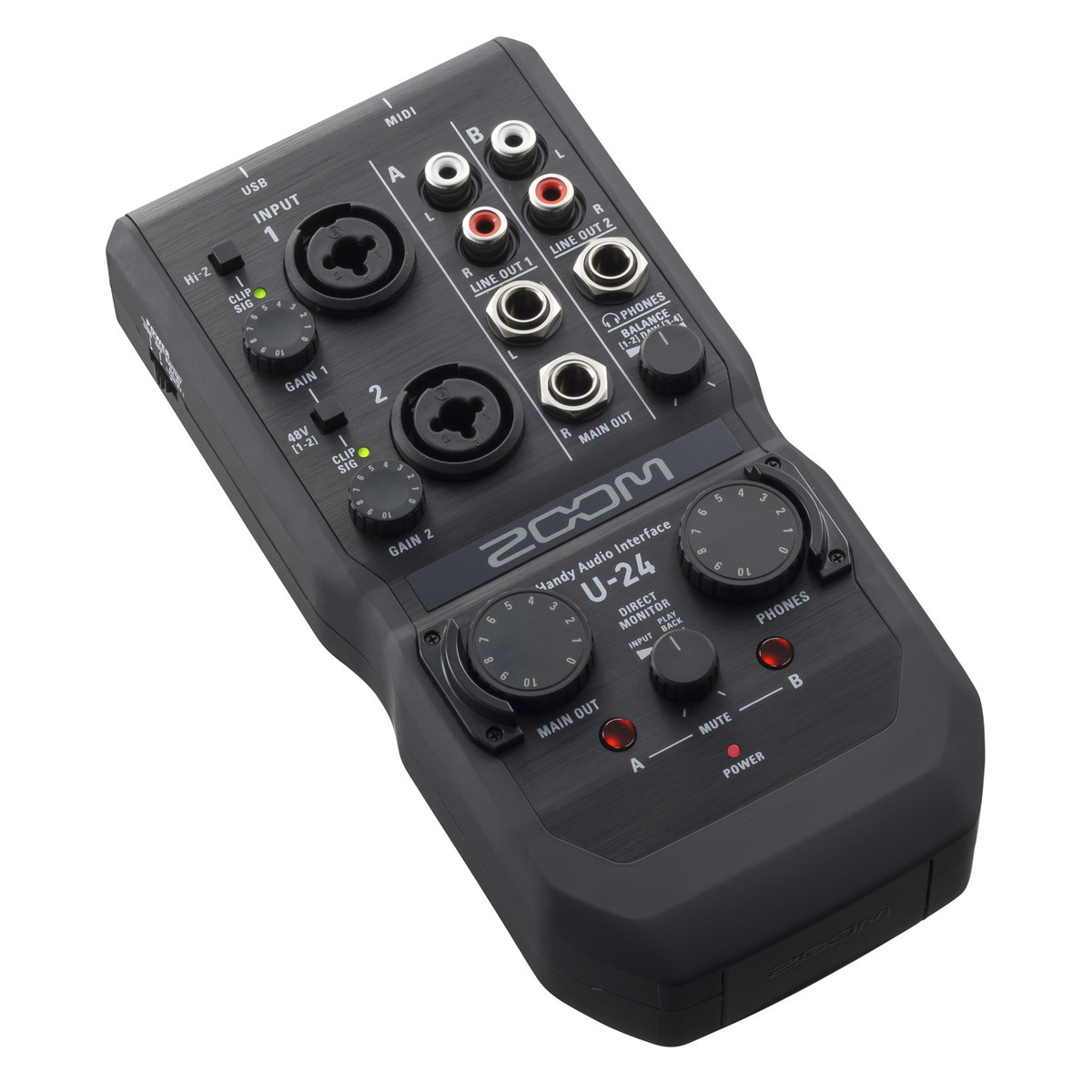

Zoom U-24 USB Lydkort

Art.nr: ZOO-U24
1.225,-
Antall:

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Zoom
Leverandørlager. 5-7 virkedager til lager.

Få utrolig lydkvalitet takket være preamper med høy kvalitet og lav støy, de samme som du finner i anerkjente H5 og H6 Handy opptakere. Koble til PC, Mac eller iPad via USB og ta opp fra mikrofoner, instrumenter og mer. U-24 leverer den samme gode lyden som  U-44, med et mer strømlinjeformet funksjonssett.

  • Multi-channel and stereo USB audio interface for PC/Mac/iPad
  • Connect to iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
  • Two mic/line inputs with high performance mic preamps
  • High quality recording and playback at resolutions up to 24-bit/96 kHz
  • Approximately 4 hours of operation with 2 AA alkaline batteries
  • Includes download code for Ableton Live 9 Lite
  • Two-channel simultaneous inputs
  • Hi-Z support (input 1)
  • Zero-latency direct monitoring
  • Two TRS phone jack outputs
  • Dedicated RCA L/R and headphone outputs
  • MIDI I/O
  • Gain control knobs for each input
  • +48V phantom power for inputs 1 and 2
  • Accepts standard AA alkaline or NiMH rechargeable batteries



Spesifikasjoner

ANALOG IN: INPUT 1/2
Connector: TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)
Input gain: 0 – 43 dB
Input impedance: 2.6 k O (MIC IN) 1.1 M O (when Hi-Z ON)
Maximum input level: +2.7 dBu (MIC IN) /+20.7 dBu (TRS IN)
Phantom power: +48V

ANALOG OUT: MAIN OUT L/R
Connector: TRS phone jacks (unbalanced)
Maximum output level: +10 dBu (at 0 dBFS)
Output impedance: 330 O

ANALOG OUT: LINE OUT 1/2
Connector: RCA (coaxial)
Maximum output level: +8 dBu (at 0 dBFS)
Output impedance: 1kO

ANALOG OUT: PHONES
Connector: Standard stereo phone jack 30 mW x 2 (into 32 O load)
Maximum output level: +10 dBu (at 0 dBFS)
Output impedance: 33 O
Frequency characteristics: At 44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
                                                At 96 kHz: -3.5 dB: 20 Hz - 40 kHz
Input conversion noise: Measured EIN: -119.5 dB (IHF-A) at 43 dB, 150 O input

Number of audio recording and playback channels:
Recording: 2 channels
Playback: 4 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit depth: 24-bit

Interface:
USB 2.0
MIDI IN/OUT: 5-pin DIN jack
Power Source: USB bus power (Type B)
Zoom AD-17 (Micro-B) DC 5V power supply (Micro-B)
2 AA batteries (4 hours continuous operation with phantom power off)
Power consumption: 5W maximum
Dimensions: 191.8 mm (D) x 92.3 mm (W) x 42.7 mm (H)
Weight (main unit only): 285 g

*0dBu=0.775Vrms



U-24 SYSTEM REQUIREMENTS

Windows:
OS: Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
CPU: Intel® Core i3 or faster*
USB: USB 3.0/USB 2.0**
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

Mac:
OS: Mac® OS X 10.9.5 or later / 10.10 / 10.11 / 10.12
CPU: Intel® Core i3 or faster
USB: USB 3.0/USB 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.

iPhone/iPad:
OS: iOS 7.1 or later
* Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter.
